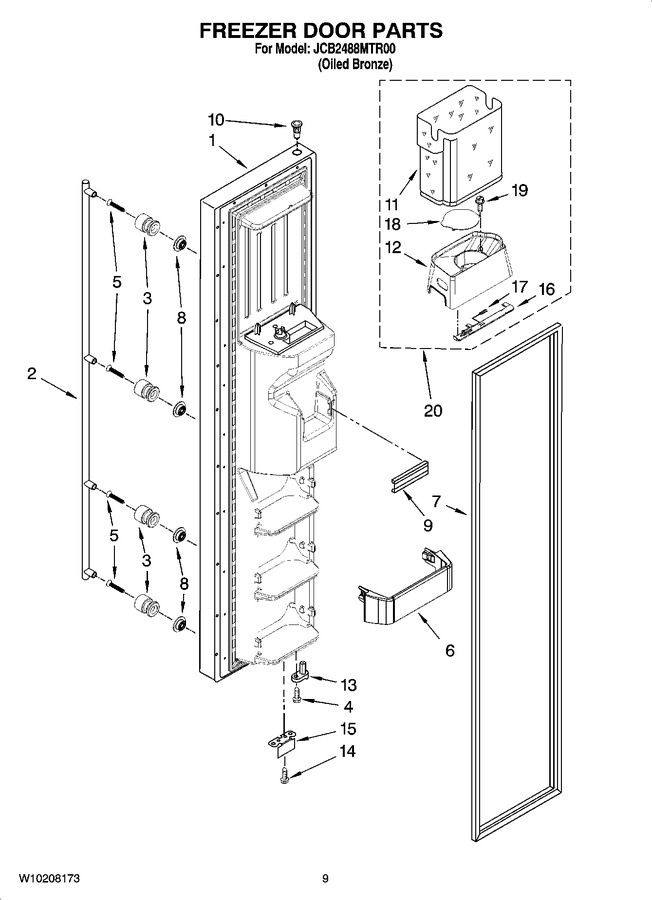

06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts


10 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10151645		Freezer Door (includes 8 And Dispenser Front Parts) (oiled Bronze)		Appelez-nous	-
2	12850907		Handle (stainless Steel)				$ 119.22
3	67006109		Mount, Hdl (4)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.04
5	W10160454		Screw, Mount (4)				$ 12.36
6	2223559K		Shelf Bin (3)		Appelez-nous	-
7	2306995		Door Gasket, Magnetic (black)   (Replaces: 2223910)				$ 283.94
8	67005087		Spacer, Hdl (4)		Appelez-nous	-
9	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 20.80
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 6.98
11	2223317		Upper Bin				$ 74.94
12	W10162938		Lower Bin		Appelez-nous	-
13	2307050		Thimble Cam, Fc				$ 39.47
14	WP489483		Screw   (Replaces: 489420)				$ 9.78
15	2306940B		Bracket, Door Stop (black)				$ 33.40
16	2317272		Latch, Bin		Appelez-nous	-
17	WP2198608		Spring, Latch   (Replaces: 2198608)				$ 6.47
18	W10131326		Cover, Crusher		Appelez-nous	-
19	WP3400065		Screw (2)   (Replaces: 3400065)			Immediately	$ 6.97
20	W10162937		Ice Container (complete)		Appelez-nous	-
