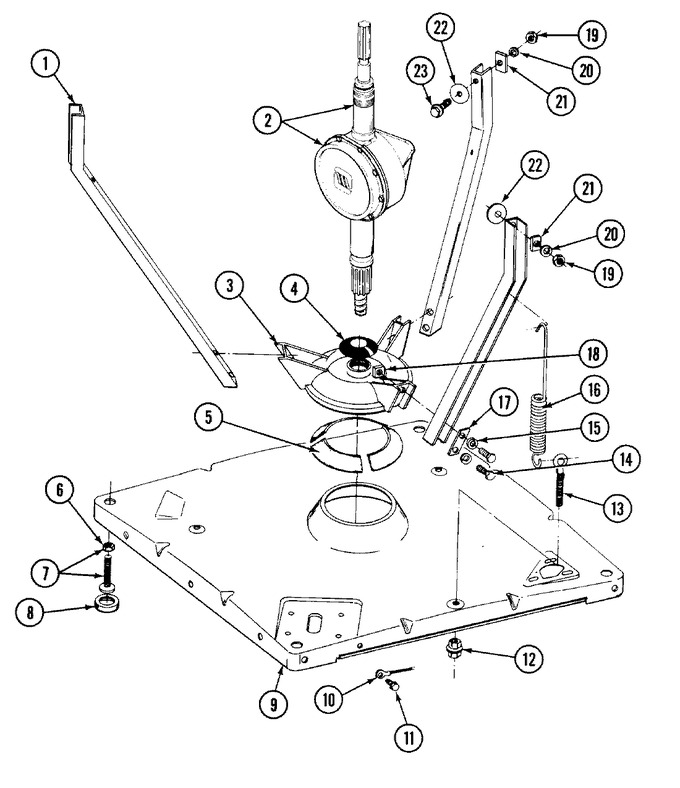

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	213053		Brace, Tub	A5	Appelez-nous	-
2	206707		Transmission, Orbital	A5	Appelez-nous	-
3	1N4004		Damper W/bolt & Clip   (Replaces: 203725)	A5	Appelez-nous	-
4	211028		Deflector,water (drive Tube)	A5	Appelez-nous	-
5	203956		Damper Pad Kit (w/poly Lube)	A5		Immediately	$ 47.33
6	WP210385		Nut, Lock   (Replaces: 210385)	A5			$ 6.26
7	22003428		Leg, Adjustable (w/nut)   (Replaces: Y302699)	A5		Immediately	$ 14.41
8	WP210684		Foot, Rubber   (Replaces: 210684)	A5		Immediately	$ 14.09
9	203274		Base With Damper Pads	A5	Appelez-nous	-
10	204807		Grnd.wire,supp.plte To Top Cvr	A5	Appelez-nous	-
11	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	A5			$ 9.79
12	WP211949		Nut, Eyebolt   (Replaces: 211949)	A5			$ 6.88
13	W11129403		Eye Bolt For Center Spring   (Replaces: 213120)	A5			$ 12.23
14	Y015627		Screw, Hex Hd Cap 5/16 X 5/8	A5			$ 8.15
15	911852		Washer, Lock (brace)	A5	Appelez-nous	-
16	213054		Centering Spring - 3 Used	A5	Appelez-nous	-
17	213073		Washer, Double	A5	Appelez-nous	-
18	Y052785		Nut,brace To Damper	A5	Appelez-nous	-
19	Y052734		Nut	A5	Appelez-nous	-
20	Y054867		Washer, Lock	A5	Appelez-nous	-
21	212979		Washer, Tub Brace	A5			$ 91.61
22	211100		Washer, Cushion	A5	Appelez-nous	-
23	W10175938		Bolt & Gasket Assembly (long)   (Replaces: 205254)	A5		Immediately	$ 7.00
23	W10175939		Bolt & Gasket Assy.(short)   (Replaces: 200744)	A5			$ 7.79
