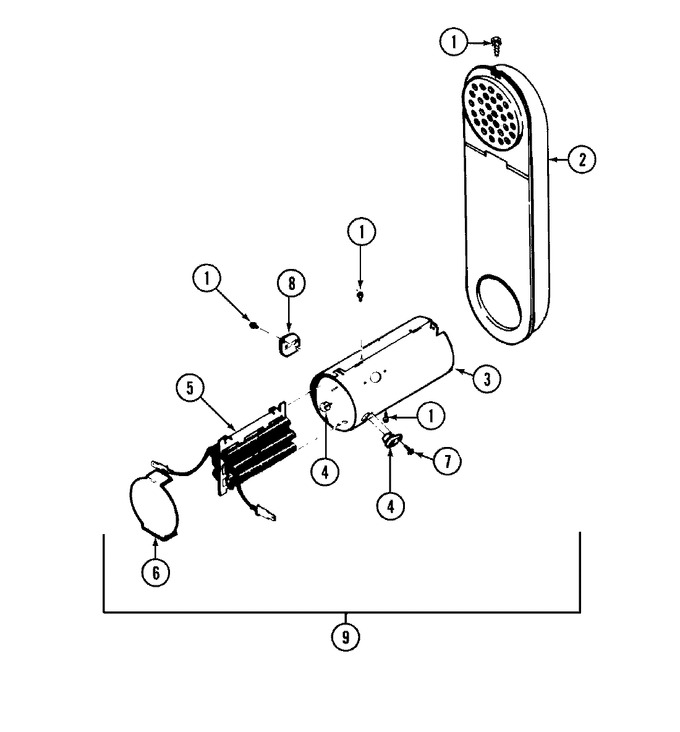

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw   (Replaces: 211294)	A5		Immediately	$ 7.04
2	Y303362		Inlet Duct Assembly - De	A5	Appelez-nous	-
3	314995		Heater Enclosure	A5	Appelez-nous	-
4	314998		Insulator, Terminal	A5			$ 18.77
5	Y308576		Heater Sub Assy	A5	Appelez-nous	-
6	315000		Shield, Radiant	A5	Appelez-nous	-
7	314554		Screw	A5	Appelez-nous	-
8	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	A5		Immediately	$ 44.02
9	Y308567		Heater Assy	A5	Appelez-nous	-
