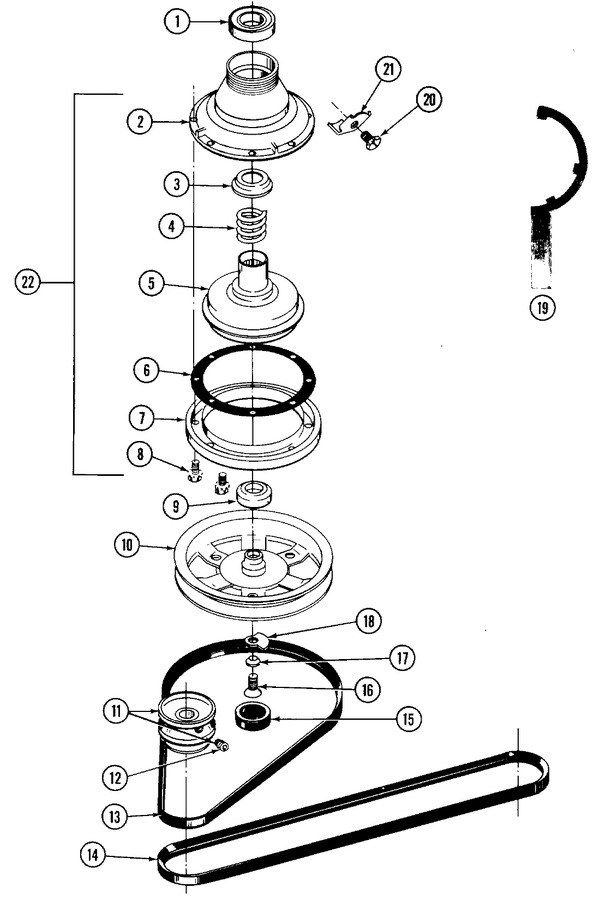

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y200720		Ball Bearing, Radial	A5	Appelez-nous	-
2	211045		Housing, Brake	A5	Appelez-nous	-
3	211039		Retainer, Brake Spring	A5	Appelez-nous	-
4	211041		Spring, Brake	A5	Appelez-nous	-
5	201126		Rotor, Brake (w/facing)	A5	Appelez-nous	-
6	211042		Gasket, Brake Drum	A5	Appelez-nous	-
7	211043		Drum, Brake	A5	Appelez-nous	-
8	WP8281227		Screw,hex Head (brake Drum)   (Replaces: 211000)	A5			$ 9.40
9	200835		Bearing, Brake Rotor	A5			$ 30.47
10	WP6-2301530		Pulley, Drive   (Replaces: 211059)	A5			$ 178.73
11	Y202496		Pulley, Motor (w/set Screw)	A5	Appelez-nous	-
12	Y053241		Set Screw, Pulley	A5	Appelez-nous	-
13	WP211948		Drive Belt 120-50 240-50   (Replaces: 211948)	A5		Immediately	$ 119.90
14	WP211451		Pump Belt 120-50 240-50   (Replaces: 211451)	A5			$ 93.19
15	WP211451		Pump Belt 120-50 240-50   (Replaces: 211451)	A5			$ 93.19
16	WP912618		Screw,stop Lug(center Shaft)   (Replaces: 211375)	A5			$ 6.98
17	WP22003555		Washer, Lock   (Replaces: 211090)	A5			$ 19.26
18	WP211089		Lug, Stop   (Replaces: 211089)	A5			$ 10.16
19	Y038315		Tool, Brake Pkg Assy	A5	Appelez-nous	-
20	213326		Screw, Retaining Clip	A5	Appelez-nous	-
21	213325		Clip, Retainer	A5			$ 5.51
22	201190		Brake Assembly	A5	Appelez-nous	-
