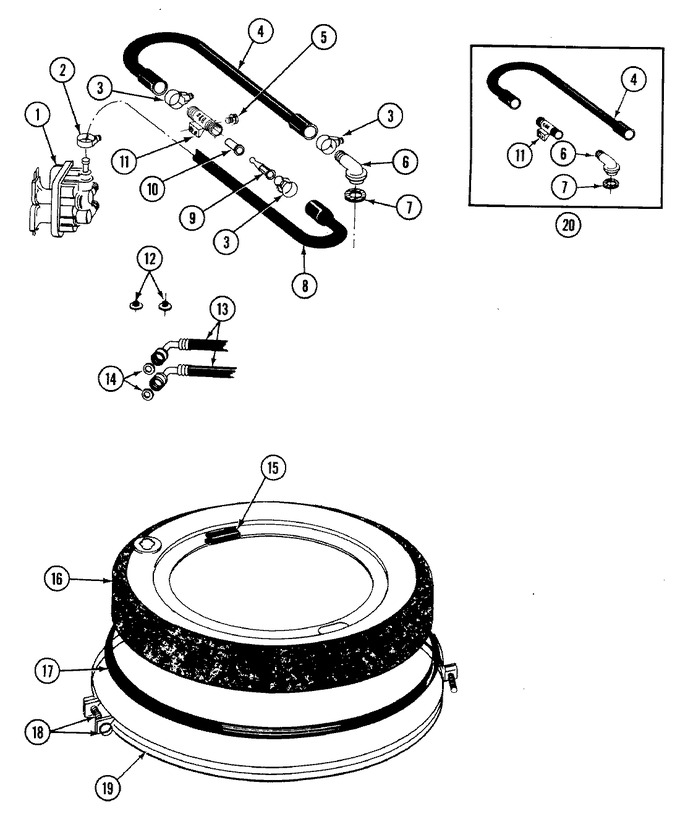

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y205684		Water Valve 240-50	A5	Appelez-nous	-
2	WP596669		Hose Clamp   (Replaces: 201575)	A5		Immediately	$ 7.56
3	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	A5		Immediately	$ 7.56
4	WPY215234		Injector Fill Hose   (Replaces: Y215234)	A5			$ 83.54
5	Y310632		Screw	A5	Appelez-nous	-
6	215235		Injector Tube	A5			$ 16.14
7	215233		Seal For Injector Tube	A5			$ 5.84
8	WP213013		Hose, Injector   (Replaces: 213013)	A5		Immediately	$ 44.40
9	WP213015		Injector Nozzle   (Replaces: 213015)	A5		Immediately	$ 7.29
10	WP216201		Valve For Injector Sub   (Replaces: 213016)	A5		Immediately	$ 18.88
11	WP22213057		Sleeve For Injector   (Replaces: 213057)	A5			$ 8.06
12	200961		Screen Washer, Inlet Hose	A5	Appelez-nous	-
13	208322		Hose, Inlet	A5	Appelez-nous	-
14	Y013783		Gasket, Inlet Hose	A5			$ 18.72
15	215232		Unbalance Bumper	A5	Appelez-nous	-
16	207775		Tub Cover Assy	A5	Appelez-nous	-
17	WP211232		Seal   (Replaces: 211232)	A5			$ 62.96
18	205529		Nut & Bolt Kit For Tub Clam	A5			$ 6.58
19	200846		Clamp - Tub Cover	A5			$ 62.11
20	206531		Injector Hose Kit	A5	Appelez-nous	-
