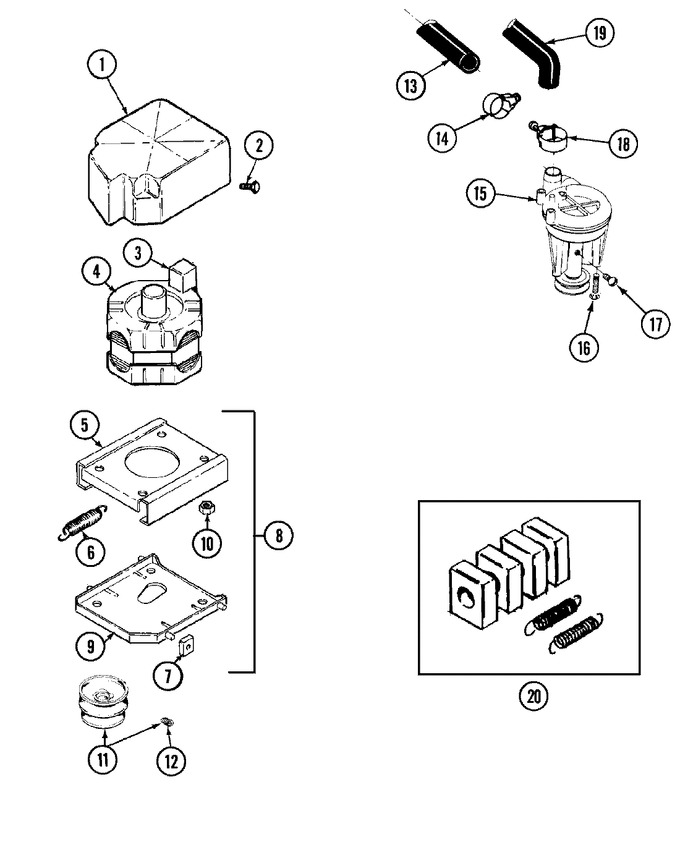

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215098		Shield, Motor	A5	Appelez-nous	-
2	WPW10346892		Screw   (Replaces: 213121)	A5		Immediately	$ 6.47
3	205132		Switch, Motor Start	A5	Appelez-nous	-
4	12002352		Motor (one Speed - Export)   (Replaces: 202157)	A5			$ 256.15
5	214956		Mount, Motor/upper	A5	Appelez-nous	-
6	202718		Tension Springs	A5		Immediately	$ 200.35
7	205000		Glide Kit (4 W/poly Lube)   (Replaces: 204998)	A5			$ 62.00
8	205999		Motor Mount Assm Complete	A5			$ 61.84
9	205908		Lower Motor Mount	A5	Appelez-nous	-
10	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	A5		Immediately	$ 6.98
11	200816		Pulley, Motor (w/set Screw)	A5	Appelez-nous	-
12	Y053241		Set Screw, Pulley	A5	Appelez-nous	-
13	WP22001448		Hose   (Replaces: 215365)	A5			$ 79.87
14	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	A5		Immediately	$ 7.55
15	202203		Pump As Pak	A5	Appelez-nous	-
16	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	A5			$ 6.98
17	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	A5			$ 7.04
18	WP3367052		Clamp, Hose   (Replaces: 202574)	A5			$ 7.49
19	WP213045		Drain Hose-tub To Pump   (Replaces: 213045)	A5		Immediately	$ 43.57
20	205000		Glide & Spring Kit	A5			$ 62.00
20	211149		Clip, Capacitor	A5			$ 6.23
20	201101		Capacitor	A5	Appelez-nous	-
20	WP210720		Rivet   (Replaces: 210720)	A5			$ 12.14
