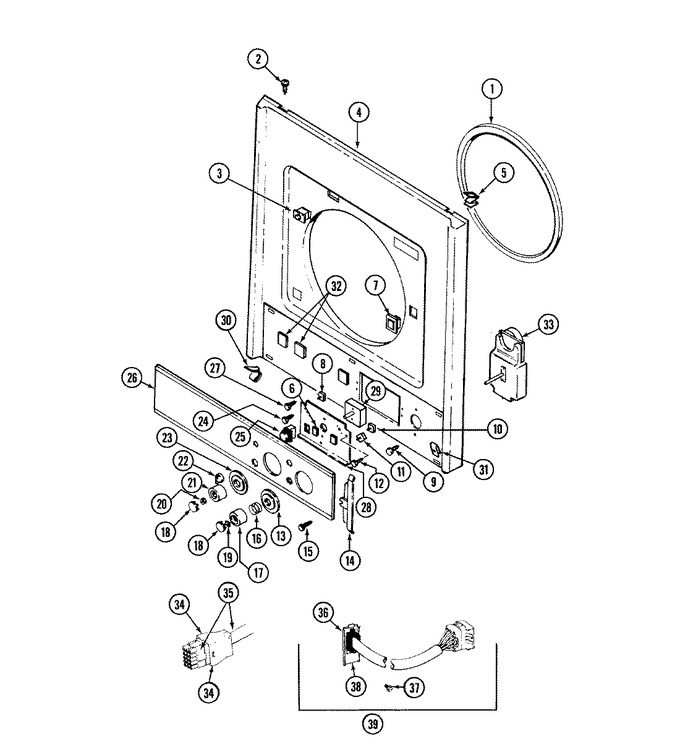

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 314286 | Seal For Front Panel | A5 |
|
$ 90.56 | ||||
| 2 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | A5 |
|
$ 6.47 | ||||
| 3 | W10169313 | Switch, Door (Replaces: Y305753) | A5 |
|
Immediately | $ 29.18 | |||
| 4 | 315261L | Front Panel (almond) | A5 |
|
- | ||||
| 5 | Y310376 | Clip, Wire Harness | A5 |
|
- | ||||
| 6 | 315287 | Bumper Small | A5 |
|
- | ||||
| 7 | 306436 | Door Latch Kit | A5 |
|
Immediately | $ 10.17 | |||
| 8 | 308017 | Switch, Dryer Temperature | A5 |
|
- | ||||
| 9 | WP3400014 | Screw-timer To Control Pane (Replaces: 213966) | A5 |
|
$ 6.98 | ||||
| 10 | 207782 | Switch, Water Temperature | A5 |
|
- | ||||
| 11 | 207800 | Switch, Water Level | A5 |
|
- | ||||
| 12 | WP90767 | Screw (Replaces: 211294) | A5 |
|
Immediately | $ 7.04 | |||
| 13 | 207794 | Timer Dial - Washer | A5 |
|
- | ||||
| 14 | 315267 | End Cap,control Panel (blk) | A5 |
|
- | ||||
| 15 | WP8281227 | Screw,hex Head (brake Drum) (Replaces: 211000) | A5 |
|
$ 9.40 | ||||
| 16 | 211065 | Spring, Timer Knob | A5 |
|
$ 5.70 | ||||
| 17 | 215828 | Knob, Timer (blk) | A5 |
|
$ 11.97 | ||||
| 18 | 215821 | Cap, Knob | A5 |
|
- | ||||
| 19 | 211605 | Retainer, Timer Knob | A5 |
|
- | ||||
| 20 | W10155650 | Nut (Replaces: 312273) | A5 |
|
$ 12.03 | ||||
| 21 | 315041 | Knob, Timer | A5 |
|
- | ||||
| 22 | 308041 | Knob, Rotary (Replaces: 308035) | A5 |
|
Immediately | $ 1.70 | |||
| 23 | 308032 | Timer Dial | A5 |
|
- | ||||
| 24 | 215952 | Screw | A5 |
|
- | ||||
| 25 | Y308025 | Switch, Push To Start (blk) | A5 |
|
$ 48.47 | ||||
| 26 | 308038 | Control Panel | A5 |
|
- | ||||
| 27 | 215952 | Screw | A5 |
|
- | ||||
| 28 | 315237 | Bracket For Switches & Timer | A5 |
|
- | ||||
| 29 | Y308563 | Timer | A5 |
|
- | ||||
| 30 | 314482 | Fastener, Spring | A5 |
|
- | ||||
| 31 | 488660 | Nut (Replaces: 314748) | A5 |
|
- | ||||
| 32 | 315286 | Bumper Large | A5 |
|
- | ||||
| 33 | 208229 | Timer | A5 |
|
- | ||||
| 34 | 215960 | Strain Relief | A5 |
|
- | ||||
| 35 | 208232 | Harness, Wire | A5 |
|
- | ||||
| 35 | 308338 | Wire Harness | A5 |
|
- | ||||
| 36 | 215948 | Grommet | A5 |
|
- | ||||
| 37 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A5 |
|
$ 6.75 | ||||
| 38 | 216008 | Bracket Gromment | A5 |
|
- | ||||
| 39 | 207945 | Wire Harness Upper | A5 |
|
- |
