SELECT A DIAGRAM

01 - Base


02 - Base/brake


03 - Blower & Lint Screen


04 - Cabinet


05 - Cabinet-dryer


06 - Cabinet-rear


07 - Door


08 - Front


09 - Front Panel & Control Panel


10 - Heater


11 - Motor & Pump


12 - Motor-dryer


13 - Top & Lid


14 - Transmission


15 - Tub Cover


16 - Tub-inner & Outer


17 - Tumbler

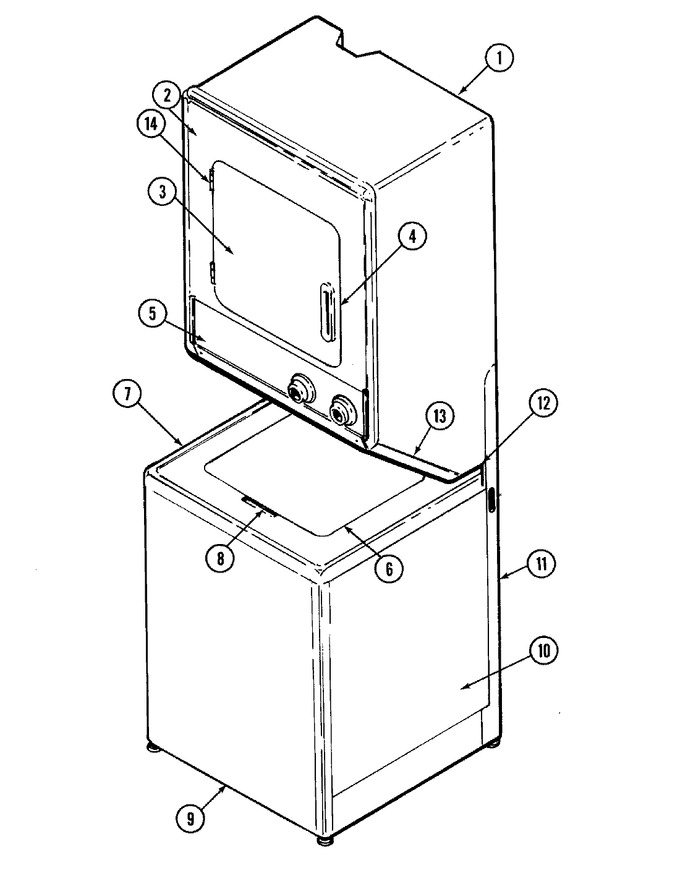

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	308055L		Cabinet (alm)	A5	Appelez-nous	-
2	315261L		Front Panel (almond)	A5	Appelez-nous	-
3	314475L		Panel, Outer Door (alm)	A5	Appelez-nous	-
4	314476		Handle,door	A5	Appelez-nous	-
5	308038		Control Panel	A5	Appelez-nous	-
6	215251L		Lid-almond----na	A5	Appelez-nous	-
7	207579L		Top Cover (almond)	A5	Appelez-nous	-
8	215549		Handle For Lid	A5	Appelez-nous	-
9	207205L		Panel, Front (alm)----na	A5	Appelez-nous	-
10	207207L		Cabinet Alm----na	A5	Appelez-nous	-
11	306110L		Stand,dryer(complete)(alm)	A5	Appelez-nous	-
13	306072L		Access Panel-almond----na	A5	Appelez-nous	-
14	Y304577		Door Hinge	A5	Appelez-nous	-
15	16000327		Guide, Quick Ref. - Maytag	A5	Appelez-nous	-
15	315461		Manual, Use & Care	A5	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
