SELECT A DIAGRAM

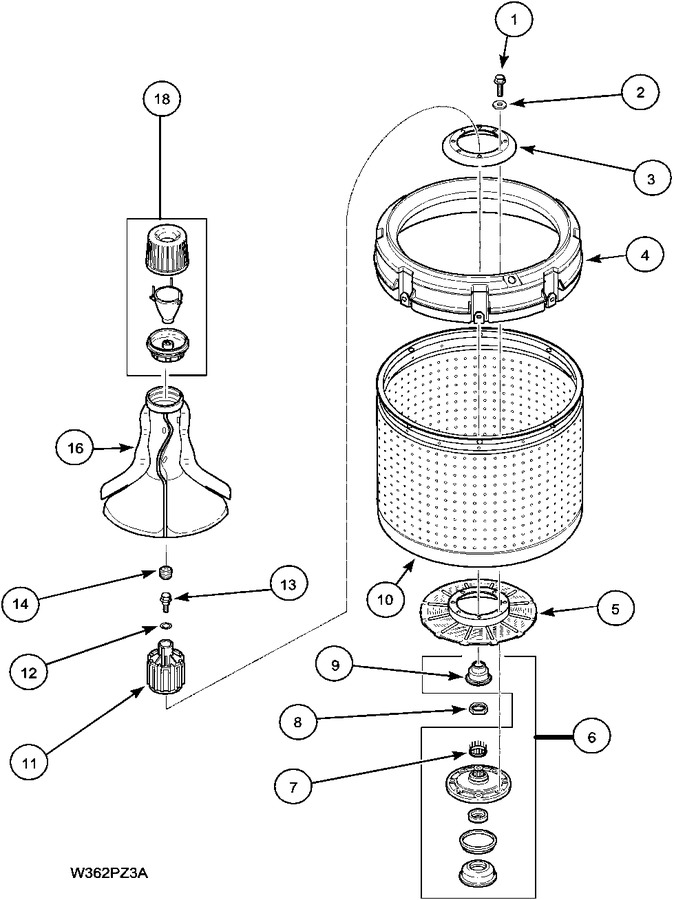

01 - Agitator, Drive Bell And Wash Tub


02 - Cabinet Top And Door


03 - Control Panel


04 - Drain Hose And Siphon Break


05 - Front Panel, Base And Cabinet Assembly


06 - Inlet/fill Hoses And Mixing Valve


07 - Loading Door Switch


08 - Miscellaeous Information


09 - Motor, Belt And Pump And Idler Assy


10 - Outer Tub, Cover, Pressure Hose


11 - Transmission Assembly


12 - Weldment/bearing Assy And Brake/pulley


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
2	28094		Gasket		Appelez-nous	-
3	39113		Washer (large Ring For Tub)		Appelez-nous	-
4	37411		Balance Ring		Appelez-nous	-
5	39112		Lint Filter		Appelez-nous	-
6	646P3A		Hub And Seal Kit   (Replaces: 646P3)				$ 313.62
7	29728		Splined Insert			Immediately	$ 6.95
8	Y29220		Locknut		Appelez-nous	-
9	DE81-10150A		Seal   (Replaces: 36425)				$ 128.20
10	39386		Washtub		Appelez-nous	-
11	39508P		Drive Bell & Seal Kit   (Replaces: 36443P)			Immediately	$ 45.90
12	36472		O-ring				$ 23.37
13	34288		Shoulder Screw		Appelez-nous	-
14	DE81-08662A		Plug   (Replaces: 36511)				$ 28.04
16	36507		Agitator			Immediately	$ 52.19
18	36542		Fabric Softener Dispenser			Immediately	$ 12.11

    View Diagram in Separate Window       Print Part List
