SELECT A DIAGRAM

01 - Agitator, Drive Bell And Wash Tub


02 - Cabinet Top And Door


03 - Control Panel


04 - Drain Hose And Siphon Break


05 - Front Panel, Base And Cabinet Assembly


06 - Inlet/fill Hoses And Mixing Valve


07 - Loading Door Switch


08 - Miscellaeous Information


09 - Motor, Belt And Pump And Idler Assy


10 - Outer Tub, Cover, Pressure Hose


11 - Transmission Assembly


12 - Weldment/bearing Assy And Brake/pulley

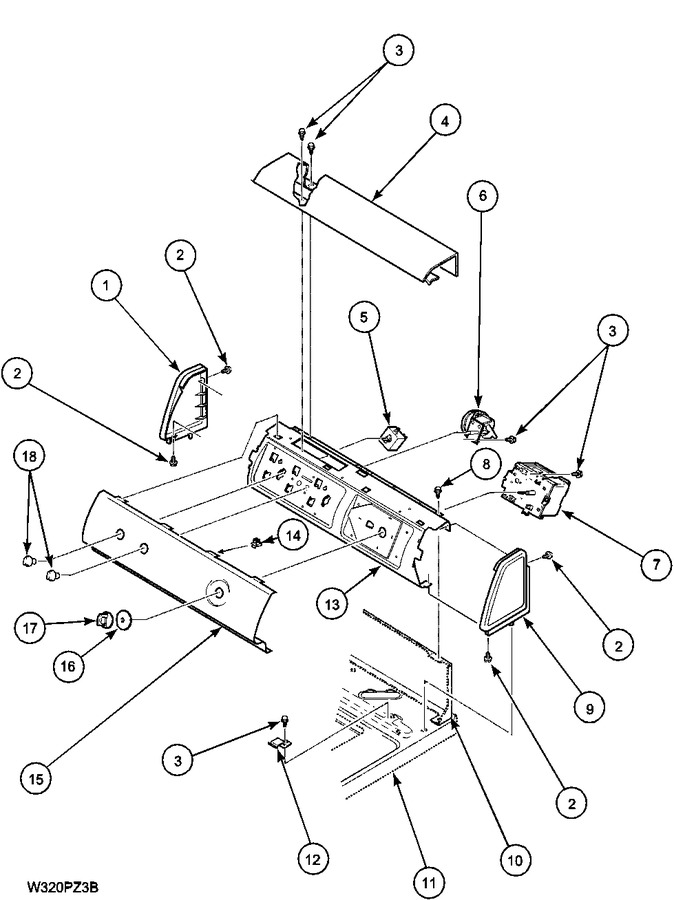

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	504009L		Panel,end Lh Almond		Appelez-nous	-
2	WP90767		Screw, 8b-18x3/8 Slt   (Replaces: 501086)			Immediately	$ 7.04
3	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
4	38231L		Top Cover		Appelez-nous	-
5	35115		Switch,temperature 3 P				$ 30.67
6	38842		Pressure Switch		Appelez-nous	-
7	37929P		Timer, 115v/60hz 3 Cyc   (Replaces: 37929)				$ 385.86
8	W11233072		Screw,8-18 X 3/8 Phil Pan Hd   (Replaces: 34904)			Immediately	$ 12.62
9	504008L		Panel,end-rh Almond		Appelez-nous	-
10	37782		Control Hood Back Panel				$ 26.14
11	37992LP		Top, Home W/bleach		Appelez-nous	-
12	35887		Hold-down Clip		Appelez-nous	-
13	38171		Panel, Control Support				$ 46.87
14	Y00161		Ground Clip		Appelez-nous	-
15	39614L		Panel, Graphics (almond)		Appelez-nous	-
16	56700		Frame,r.h.		Appelez-nous	-
17	35333L		Knob, Timer		Appelez-nous	-
18	36701L		Knob (almond)				$ 14.80

    View Diagram in Separate Window       Print Part List
