SELECT A DIAGRAM

Diagram for 01 - Agitator, Drive Bell And Wash Tub
01 - Agitator, Drive Bell And Wash Tub

Diagram for 02 - Cabinet Top And Door
02 - Cabinet Top And Door

Diagram for 03 - Control Panel
03 - Control Panel

Diagram for 04 - Drain Hose And Siphon Break
04 - Drain Hose And Siphon Break

Diagram for 05 - Front Panel, Base And Cabinet Assembly
05 - Front Panel, Base And Cabinet Assembly

Diagram for 06 - Inlet/fill Hoses And Mixing Valve
06 - Inlet/fill Hoses And Mixing Valve

Diagram for 07 - Loading Door Switch
07 - Loading Door Switch

No Diagram Image Available
08 - Miscellaeous Information

Diagram for 09 - Motor, Belt And Pump And Idler Assy
09 - Motor, Belt And Pump And Idler Assy

Diagram for 10 - Outer Tub, Cover, Pressure Hose
10 - Outer Tub, Cover, Pressure Hose

Diagram for 11 - Transmission Assembly
11 - Transmission Assembly

Diagram for 12 - Weldment/bearing Assy And Brake/pulley
12 - Weldment/bearing Assy And Brake/pulley


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 37827LP Loading Door Appelez-nous -
3 37782 Control Hood Back Panel Special Order $ 26.14

5 39039 Bushing Appelez-nous -
7 24903 Sticker,disconnect Pow Appelez-nous -
8 21903 Strain Relief Appelez-nous -
9 35887 Hold-down Clip Appelez-nous -
10 37992L Cabinet Top Appelez-nous -
11 36519 Clip Special Order $ 6.95

13 38238LP Front Panel Appelez-nous -
14 38271 Clip Special Order $ 0.93

16 202996 Bleach Dispenser   (Replaces: 38382) Special Order $ 6.95

17 DE81-10050A Hinge, Lid R   (Replaces: 36437) Special Order $ 33.80

18 36513 Hinge, Left Special Order $ 16.85

19 21685 Bumper In-Stock Immediately $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

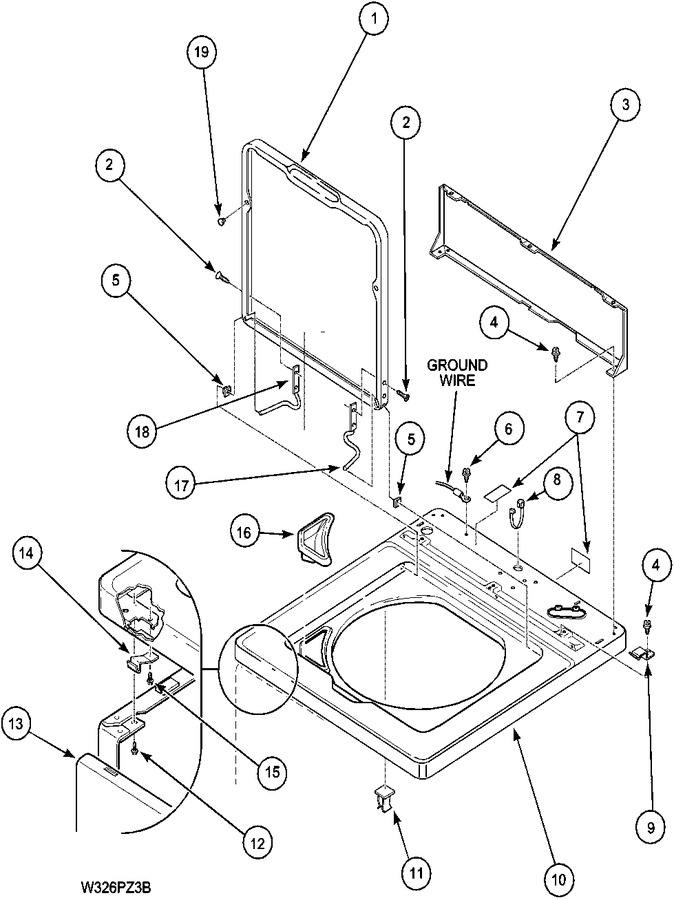

Diagram for LWA40AL2 (BOM: PLWA40AL2)
