SELECT A DIAGRAM

01 - Agitator, Drive Bell And Wash Tub


02 - Cabinet Top And Door


03 - Control Panel


04 - Drain Hose And Siphon Break


05 - Front Panel, Base And Cabinet Assembly


06 - Inlet/fill Hoses And Mixing Valve


07 - Loading Door Switch


08 - Miscellaeous Information


09 - Motor, Belt And Pump And Idler Assy


10 - Outer Tub, Cover, Pressure Hose


11 - Transmission Assembly


12 - Weldment/bearing Assy And Brake/pulley

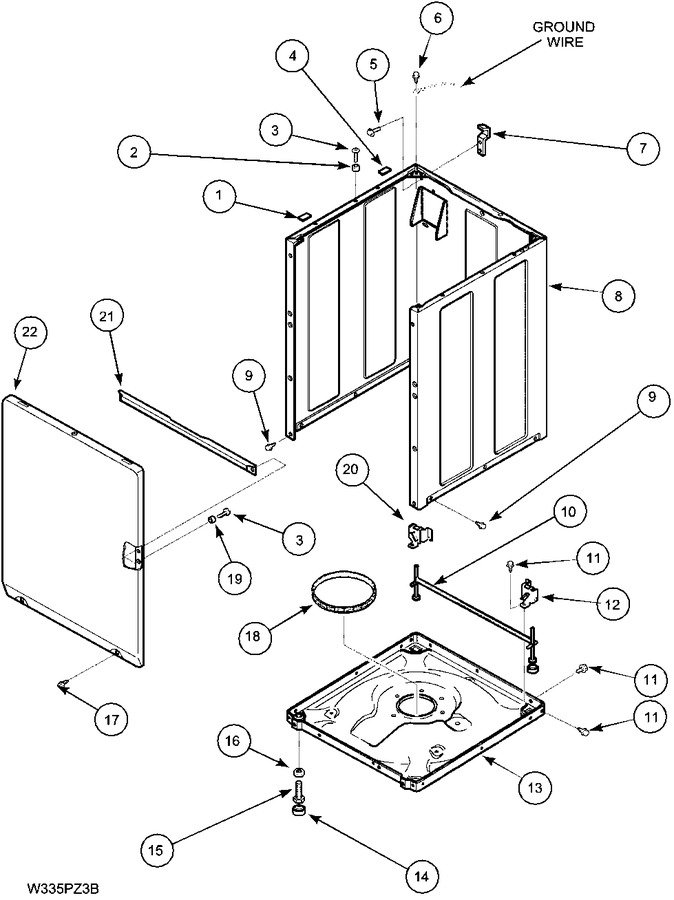

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56128		Pad, Bumper   (Replaces: Y56128)				$ 6.95
2	56079		Locater, Panel			Immediately	$ 6.95
4	36226		Pad, Bumper .25				$ 3.45
7	Y27103		Hinge,hold-down Lug		Appelez-nous	-
8	34475LP		Cabinet		Appelez-nous	-
10	34443		Assy,leg & Stabilier			Immediately	$ 44.62
12	4098G		Bracket,sll-right   (Replaces: 36036)				$ 36.76
13	37807		Base		Appelez-nous	-
14	34318		Rubber Foot			Immediately	$ 4.74
15	22003428		Leveling Leg   (Replaces: Y34319)			Immediately	$ 14.41
16	WP210385		Locknut   (Replaces: Y21899)				$ 6.26
18	37937		Friction Ring			Immediately	$ 30.29
19	28102		Locator,panel		Appelez-nous	-
20	36037		Bracket,sll-left				$ 77.94
21	Y35097		Brace, Frt Pnl		Appelez-nous	-
22	38238LP		Front Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
