SELECT A DIAGRAM

01 - Agitator, Drive Bell And Wash Tub


02 - Cabinet Top And Door


03 - Control Panel


04 - Drain Hose And Siphon Break


05 - Front Panel, Base And Cabinet Assembly


06 - Inlet/fill Hoses And Mixing Valve


07 - Loading Door Switch


08 - Miscellaeous Information


09 - Motor, Belt And Pump And Idler Assy


10 - Outer Tub, Cover, Pressure Hose


11 - Transmission Assembly


12 - Weldment/bearing Assy And Brake/pulley

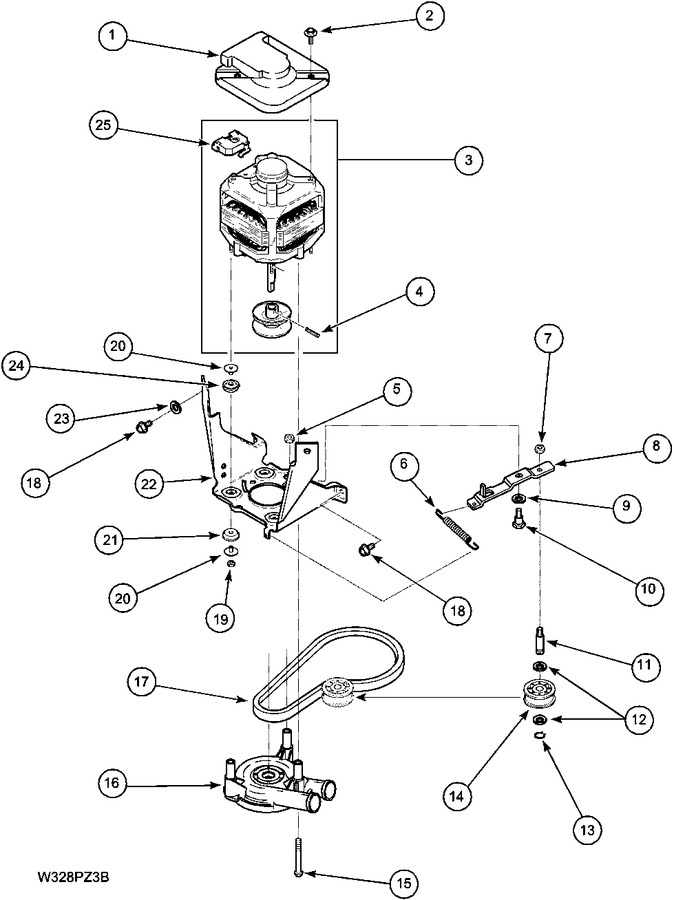

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34754		Motor Shield				$ 6.95
3	201615P		Motor Assy-115v, 60hz, 2 Speed   (Replaces: 37819)			Immediately	$ 671.21
4	10416		Pin,roll			Immediately	$ 13.73
5	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
6	Y39666		Idler Lever Spring W/silencer		Appelez-nous	-
7	56156		Locknut   (Replaces: 28803)				$ 6.95
8	38011		Idler Lever			Immediately	$ 6.95
9	81392		Washer			Immediately	$ 6.95
10	27229		Shoulder Bolt			Immediately	$ 6.95
11	WP56461		Idler Shaft   (Replaces: 38228)				$ 85.03
12	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
13	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
14	205552P		Idler Pulley   (Replaces: 38225)			Immediately	$ 19.34
16	36863P		Pump Assembly		Appelez-nous	-
17	37820		Belt			Immediately	$ 32.15
19	WP3400029		Nut   (Replaces: 35423)			Immediately	$ 6.98
20	204449CP		Motor Mount Post   (Replaces: 38325)		Appelez-nous	-
21	204449CP		Motor Mount Lower   (Replaces: 38396)		Appelez-nous	-
22	37445		Motor Mounting Bracket		Appelez-nous	-
23	37772		Washer, Aluminum .34x				$ 6.95
24	204449CP		Motor Mount Upper   (Replaces: 38395)		Appelez-nous	-
25	35632		Switch, Motor		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
