Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 36801 Clamp, Hose In-Stock Immediately $ 9.22

2 38155 Hose, Mix Valve To Tu Special Order $ 26.69

4 29210 Hose Clamp Special Order $ 6.95

5 34475LP Cabinet Appelez-nous -
6 39169 Cover, Outer Tub   (Replaces: 37502) Special Order $ 66.08

7 20618 Hose, Inlet (10 Ft) Appelez-nous -
7 WP89503 Hose,water Inlet 5 Feet   (Replaces: 28330P) In-Stock Immediately $ 21.68

7 20617 Hose, Inlet (8 Ft) Special Order $ 44.15

10 34972 Mixing Valve Mounting Bracket Appelez-nous -
11 24122 Inlet Screen Special Order $ 8.42

12 38495 Mixing Valve Appelez-nous -
14 34500 Preventor, Backflow In-Stock Immediately $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

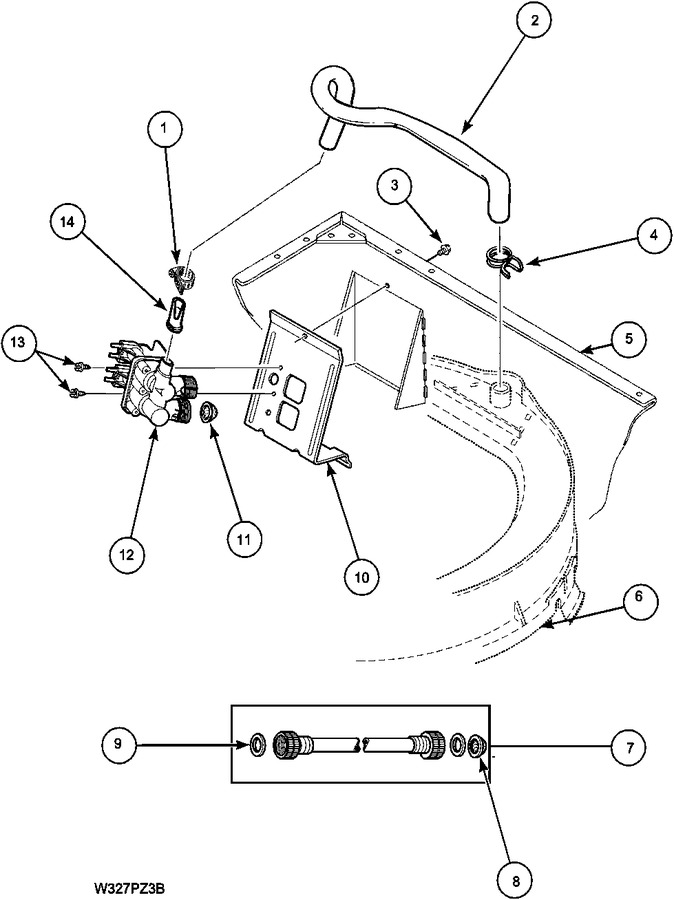

Diagram for LWA40AL2 (BOM: PLWA40AL2)
