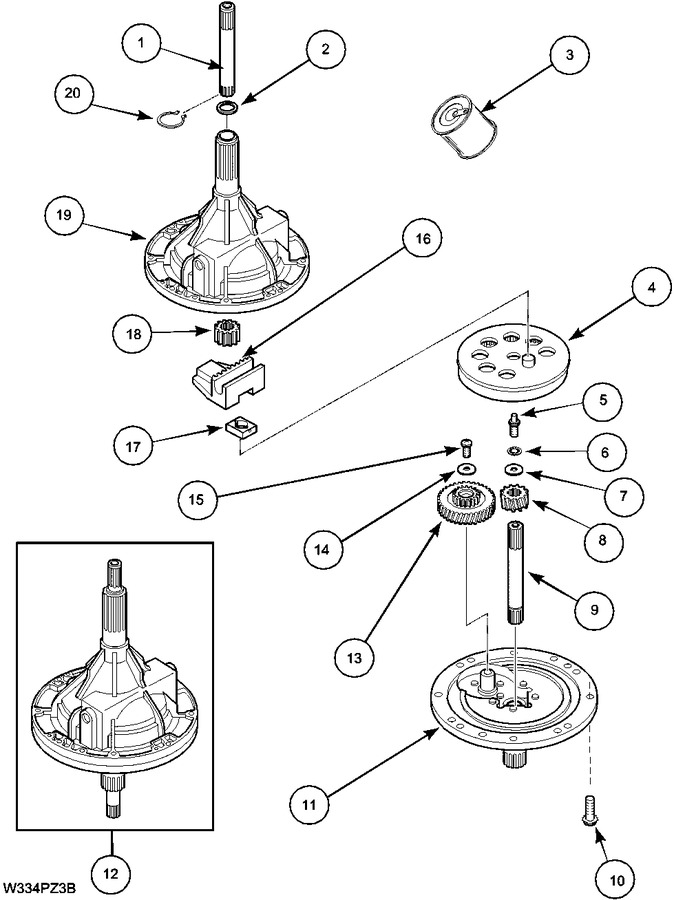

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 36570P | Shaft, Output (Replaces: Y36570) |
|
$ 81.41 | |||||
| 2 | 35092 | Washer,3628id X 1.00 X .056 |
|
$ 2.01 | |||||
| 3 | 27243P | Oil,cw Transmission F- |
|
$ 84.57 | |||||
| 4 | DE81-05916A | Assy,gear & Stud (Replaces: 26577) |
|
$ 65.22 | |||||
| 5 | 27030 | Screw,1/4-20 Special |
|
- | |||||
| 6 | 21456 | Lockwasher,1/4 Intshkp |
|
$ 154.99 | |||||
| 7 | 26509 | Washer |
|
$ 6.95 | |||||
| 8 | 37406 | Pinion, Drive |
|
- | |||||
| 9 | 38268 | Shaft, Input |
|
- | |||||
| 11 | Y37471 | Assy, Transmission Cover |
|
- | |||||
| 12 | 38165P | Transmission Assy (Replaces: 38826P) |
|
Immediately | $ 834.62 | ||||
| 13 | 37403 | Gear, Reduction |
|
- | |||||
| 14 | 29260 | Washer |
|
$ 2.50 | |||||
| 16 | 201664 | Rack (Replaces: Y31526) |
|
$ 74.76 | |||||
| 17 | 26493 | Slide |
|
Immediately | $ 8.56 | ||||
| 18 | RO81 | Pinion,agitator (Replaces: 27003) |
|
Immediately | $ 27.76 | ||||
| 19 | 33223P | Assy,transmission Case (Replaces: 33223) |
|
$ 257.24 | |||||
| 20 | 27197 | Ring,retaining |
|
$ 6.95 | |||||
| NI | 37577P | Sealant |
|
$ 142.93 |
