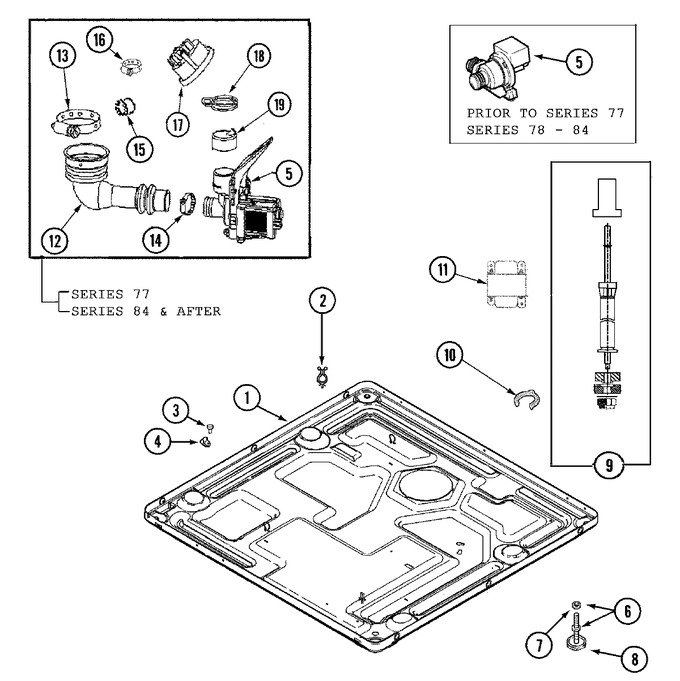

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003435 | Base (Replaces: 22002240) | 10 |
|
$ 309.12 | ||||
| 1 | 22003605 | Base Weld Assembly | 72 |
|
- | ||||
| 1 | 22003580 | Base, Assembly | 67 |
|
- | ||||
| 2 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 3 | WP90767 | Screw (Replaces: 212276) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | WP308605 | Clip (Replaces: 22002014) | 10 |
|
$ 10.08 | ||||
| 5 | 22003709 | Pump,drain (50hz) | 77 |
|
- | ||||
| 5 | 25001012 | Pump Isolator Bracket | 10 |
|
$ 96.17 | ||||
| 5 | 22003709 | Pump,drain (50hz) | 84 |
|
- | ||||
| 5 | 22003635 | Pump, High Torque | 80 |
|
$ 151.31 | ||||
| 6 | WP8563585 | Adjustable Leg W/foot & Nut (Replaces: 22003544) | 10 |
|
Immediately | $ 13.28 | |||
| 7 | WP62739 | Nut (Replaces: Y052740) | 10 |
|
$ 6.85 | ||||
| 8 | WP210684 | Foot, Rubber (Replaces: 210684) | 10 |
|
Immediately | $ 14.09 | |||
| 9 | 22001988 | Strut Assy-rear | 10 |
|
$ 200.90 | ||||
| 10 | 22003080 | Clip, Airdome Hose | 10 |
|
- | ||||
| 11 | 22002477 | Shield, Transformer | 10 |
|
- | ||||
| 11 | 22003778 | Transformer | 82 |
|
$ 174.97 | ||||
| 11 | WP33001882 | Screw, Self Drilling (Replaces: 33001882) | 10 |
|
$ 71.75 | ||||
| 11 | 22002476 | Transformer | 10 |
|
- | ||||
| 12 | 22003262 | Hose, Tub To Pump | 84 |
|
$ 27.27 | ||||
| 12 | 22003262 | Hose, Tub To Pump | 77 |
|
$ 27.27 | ||||
| 13 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 77 |
|
$ 7.31 | ||||
| 13 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 84 |
|
$ 7.31 | ||||
| 14 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 84 |
|
Immediately | $ 7.55 | |||
| 15 | 22003261 | Plug, Outer Tub | 77 |
|
- | ||||
| 15 | 22003261 | Plug, Outer Tub | 84 |
|
- | ||||
| 16 | WP285655 | Clamp, Outer Tub Plug (Replaces: 22003295) | 77 |
|
Immediately | $ 7.55 | |||
| 16 | WP285655 | Clamp, Outer Tub Plug (Replaces: 22003295) | 84 |
|
Immediately | $ 7.55 | |||
| 17 | 22003265 | Bag, Plastic W/drawstring | 84 |
|
- | ||||
| 17 | 22003265 | Bag, Plastic W/drawstring | 77 |
|
- | ||||
| 17 | 22003727 | Pressure Switch, Pump Mounted | 84 |
|
$ 86.24 | ||||
| 17 | 22003727 | Pressure Switch, Pump Mounted | 77 |
|
$ 86.24 | ||||
| 18 | WP285655 | Clamp, Hose (Replaces: 22002853) | 77 |
|
Immediately | $ 7.55 | |||
| 18 | WP285655 | Clamp, Hose (Replaces: 22002853) | 84 |
|
Immediately | $ 7.55 | |||
| 19 | 22003268 | Cap, Rubber | 77 |
|
$ 26.61 | ||||
| 19 | 22003268 | Cap, Rubber | 84 |
|
$ 26.61 |
