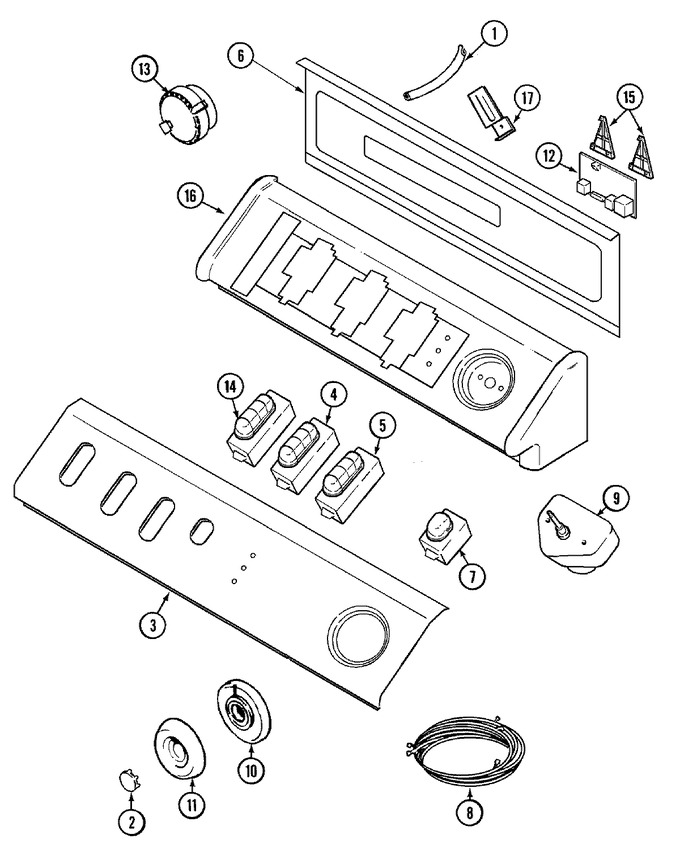

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002010 | Hose, Air Dome | 10 |
|
$ 34.16 | ||||
| 2 | WP22001664 | Timer Knob Insert/cap (wht) (Replaces: 22001664) | 10 |
|
$ 7.85 | ||||
| 3 | 22002275 | Panel, Control (wht) | 10 |
|
- | ||||
| 4 | 22003619 | Switch, Temp. 4 Pos. (wht) | 10 |
|
- | ||||
| 5 | 22003620 | Switch, Options (wht) | 10 |
|
- | ||||
| 6 | 22002529 | Console Back Panel | 10 |
|
- | ||||
| 6 | Y22002339 | Screw | 10 |
|
- | ||||
| 6 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 7 | 22002560 | Switch, Push To Start | 10 |
|
$ 29.99 | ||||
| 8 | 22002006 | Clip | 97 |
|
- | ||||
| 8 | 22003820 | Wire Harness / Hh / Unbalance | 77 |
|
- | ||||
| 8 | 22003823 | Wire Harness | 77 |
|
- | ||||
| 8 | 22003823 | Wire Harness | 84 |
|
- | ||||
| 8 | 22003836 | Harness, Upper Sub Assy,venus | 97 |
|
- | ||||
| 8 | 22003820 | Wire Harness / Hh / Unbalance | 84 |
|
- | ||||
| 8 | 22002644 | Wire Harness, Main | 10 |
|
- | ||||
| 9 | Y22002339 | Screw | 10 |
|
- | ||||
| 9 | 22002992 | Timer | 10 |
|
- | ||||
| 10 | 22002282 | Bezel, Timer Dial (wht) | 10 |
|
- | ||||
| 11 | WP22001659 | Timer Knob - Grey (Replaces: 22001659) | 10 |
|
$ 26.38 | ||||
| 12 | 22002917 | Board, Control (50hz) | 10 |
|
$ 221.42 | ||||
| 12 | 22002287 | Screw, Machine Control | 10 |
|
- | ||||
| 12 | M0282005 | Locknut (Replaces: 912077) | 10 |
|
$ 7.07 | ||||
| 13 | 22002994 | Switch, Pressure | 10 |
|
- | ||||
| 14 | 22003621 | Switch, Fabric (wht) | 10 |
|
- | ||||
| 15 | 22002284 | Bracket | 10 |
|
- | ||||
| 16 | 22002964 | Console (wht) | 10 |
|
- | ||||
| 17 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 17 | 22002178 | Bracket, Water Switch | 10 |
|
- | ||||
| 18 | 22003708 | Manual, Use & Care | 10 |
|
- | ||||
| 19 | 16010061 | Manual Kit, Service | 10 |
|
- | ||||
| 20 | 22004082 | Seal Insertion Tool | 10 |
|
$ 3.15 |
