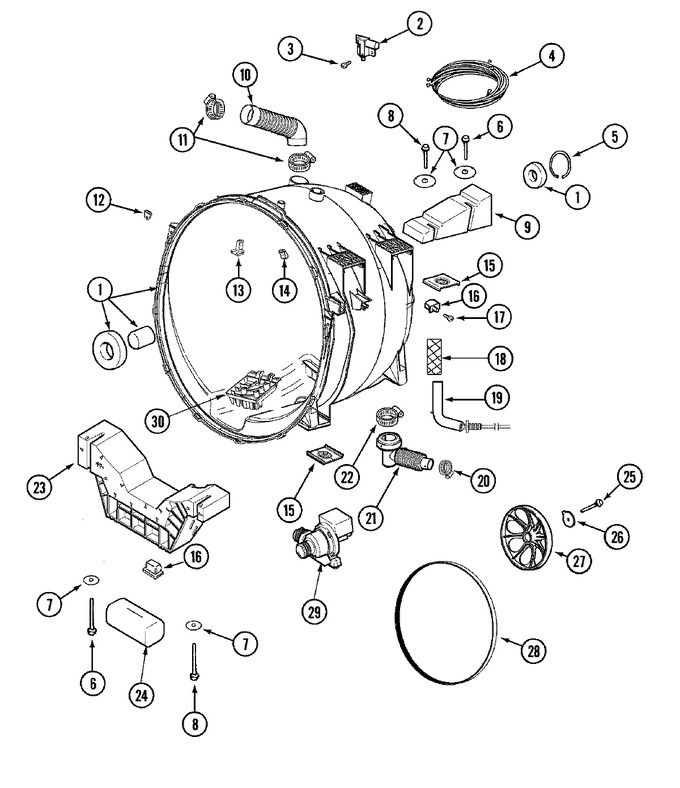

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003413 | Outer Tub Assy.(nc As Packed) | 10 |
|
- | ||||
| 1 | 22004080 | Outer Tub Assembly As-pk Kit | A1 |
|
- | ||||
| 2 | 22003302 | Switch, Internal Unbalance |
|
$ 44.42 | |||||
| 2 | 22002045 | Switch, Inertial - Unbalance | 10 |
|
- | ||||
| 2 | 22003302 | Switch, Internal Unbalance | 97 |
|
$ 44.42 | ||||
| 3 | 22002061 | Screw | 97 |
|
- | ||||
| 3 | WP9740848 | Screw (Replaces: 22002300) | 10 |
|
Immediately | $ 7.07 | |||
| 4 | 22002860 | Harness/switch Assy.(upr) | 10 |
|
- | ||||
| 5 | 22001981 | Ring, Retaining | 10 |
|
- | ||||
| 6 | 22001991 | Bolt | 10 |
|
- | ||||
| 7 | 22002067 | Washer, Counter Balance | 10 |
|
- | ||||
| 8 | 22002056 | Bolt | 10 |
|
- | ||||
| 9 | 22002102 | Weight, Counter Balance | 10 |
|
- | ||||
| 10 | WP22002083 | Hose, Injector (Replaces: 22002083) | 10 |
|
$ 124.55 | ||||
| 11 | WP616099 | Clamp, Stepless (Replaces: 22003627) | 10 |
|
Immediately | $ 7.03 | |||
| 12 | 22002103 | Clip, U | 10 |
|
- | ||||
| 13 | 22004310 | Deflector, Water (Replaces: 22002959) | 10 |
|
$ 13.68 | ||||
| 14 | 22002006 | Clip | 10 |
|
- | ||||
| 15 | 22002065 | Nut, Counter Balance | 10 |
|
- | ||||
| 16 | 22004051 | Unbalance Switch Shield | 85 |
|
- | ||||
| 16 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 97 |
|
$ 80.94 | ||||
| 16 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 19 |
|
$ 80.94 | ||||
| 16 | 22003065 | Cover, Unbalance Switch | 92 |
|
- | ||||
| 16 | WP22002044 | Switch, Tub Displacement (Replaces: 22002044) | 10 |
|
$ 80.94 | ||||
| 16 | 22003065 | Cover, Unbalance Switch | 10 |
|
- | ||||
| 17 | 22002061 | Screw | 10 |
|
- | ||||
| 18 | 33002224 | Sleeving, Braided | 10 |
|
- | ||||
| 19 | 22003628 | Tie, Cable | 10 |
|
- | ||||
| 19 | 22002010 | Hose, Air Dome | 10 |
|
$ 34.16 | ||||
| 20 | WP285655 | Clamp, Drain Hose (Replaces: 22001984) | 10 |
|
Immediately | $ 7.55 | |||
| 21 | 22003262 | Hose, Tub To Pump | 10 |
|
$ 27.27 | ||||
| 22 | WP696392 | Clamp, Sump Hose (Replaces: 22002053) | 10 |
|
$ 7.31 | ||||
| 23 | 22002579 | Front Weight Bracket | 10 |
|
- | ||||
| 24 | 22003225 | Cushion | 10 |
|
- | ||||
| 25 | WP22003937 | Screw, Spinner (Replaces: 22002057) | 10 |
|
$ 7.43 | ||||
| 26 | WP22003936 | Washer (1 1/4``) (Replaces: 22003936) | 89 |
|
$ 7.20 | ||||
| 26 | WP22003936 | Washer, Spinner Shaft (Replaces: 22002055) | 10 |
|
$ 7.20 | ||||
| 27 | 22002315 | Pulley, Spinner (Replaces: 22001998) | 10 |
|
$ 157.26 | ||||
| 28 | 12001788 | Kit, Belt & Isolator | 10 |
|
Immediately | $ 37.69 | |||
| 29 | 22002809 | Pump (50hz) | 10 |
|
- | ||||
| 30 | 22003710 | Sump Cap W/ Labyrinth Feature | 84 |
|
$ 34.38 |
