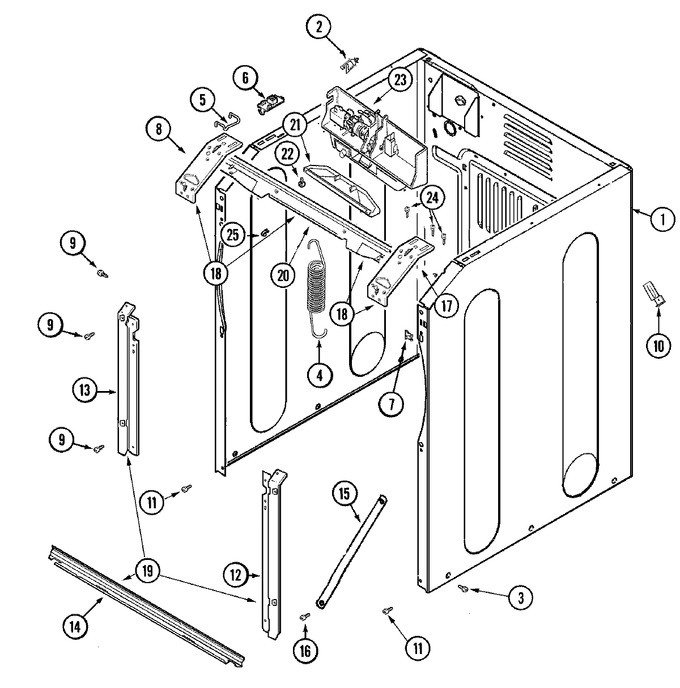

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22003582 | Cabinet, Assy. (wht-as Pk) | 67 |
|
- | ||||
| 1 | 22002548 | Cabinet Assy. (wht) | 10 |
|
- | ||||
| 1 | 22003511 | Insulation | 10 |
|
- | ||||
| 1 | 22002013 | Stop, Shipping | 10 |
|
$ 5.43 | ||||
| 1 | 22003639 | Cabinet Assy. (wht As Pk) | 72 |
|
- | ||||
| 2 | 22003298 | Retainer, Wire | 10 |
|
$ 7.71 | ||||
| 3 | 213007 | Screw----na (Replaces: 22003409) | 10 |
|
$ 10.99 | ||||
| 4 | 22002100 | Spring | 10 |
|
$ 22.82 | ||||
| 5 | 22002297 | Support, Spring | 10 |
|
$ 5.84 | ||||
| 6 | 22001997 | Spacer, Top Cover | 10 |
|
- | ||||
| 7 | 22002049 | Clip | 10 |
|
$ 8.40 | ||||
| 8 | 22003622 | Brace, Corner (rt) | 69 |
|
- | ||||
| 8 | 22002090 | Brace, Corner | 10 |
|
- | ||||
| 9 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 22002178 | Bracket, Water Switch | 10 |
|
- | ||||
| 10 | WP489128 | Screw (Replaces: 22002925) | 10 |
|
$ 9.79 | ||||
| 11 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 12 | 22003624 | Bracket, Shroud Support (lt) | 69 |
|
- | ||||
| 12 | 22002985 | Bracket, Shroud (lt) | 10 |
|
- | ||||
| 13 | 22003625 | Bracket, Shroud Support (rt) | 69 |
|
- | ||||
| 13 | 22003224 | Bracket, Shroud (rt) | 10 |
|
- | ||||
| 14 | 22003664 | Support, Lower Shroud | 69 |
|
- | ||||
| 15 | 22002259 | Brace, Cross | 10 |
|
- | ||||
| 16 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 17 | 22003623 | Brace, Corner (lt) | 69 |
|
- | ||||
| 17 | 22002292 | Brace, Corner (lt) | 10 |
|
- | ||||
| 18 | 22003637 | Brace Assembly, Top Cross | 69 |
|
- | ||||
| 19 | 22003638 | Shroud Support Assembly | 10 |
|
- | ||||
| 20 | 22003626 | Support, Door Lock | 69 |
|
- | ||||
| 20 | 22002015 | Support, Door Lock | 10 |
|
- | ||||
| 20 | 22003908 | Vapor Barrier | 86 |
|
- | ||||
| 21 | 22002957 | Cover, Latch Assembly (lwr) | 10 |
|
- | ||||
| 22 | WP241877 | Screw (Replaces: 22002435) | 10 |
|
$ 3.56 | ||||
| 23 | 12002535 | Motor, Wax (Replaces: 22002119) |
|
Immediately | $ 20.30 | ||||
| 23 | 22003463 | Latch, Assy. (export) | 10 |
|
- | ||||
| 24 | W11573574 | Screw (Replaces: 22001995) | 10 |
|
Immediately | $ 12.62 | |||
| 25 | WP308605 | Clip (Replaces: 22002014) | 10 |
|
$ 10.08 | ||||
| 26 | 22002159 | Gear, Sliding | 10 |
|
- | ||||
| 27 | 22002160 | Axle, Latch | 10 |
|
- | ||||
| 28 | 22002161 | Spring, Axle | 10 |
|
- | ||||
| 29 | WP22002162 | Switch, Door Lock Spin Enable (Replaces: 22002162) | 10 |
|
Immediately | $ 51.28 | |||
| 30 | 22002163 | Switch, Door Latch | 10 |
|
- | ||||
| 31 | 22002164 | Cable, Door | 10 |
|
- | ||||
| 32 | 22002007 | Screw | 10 |
|
- |
