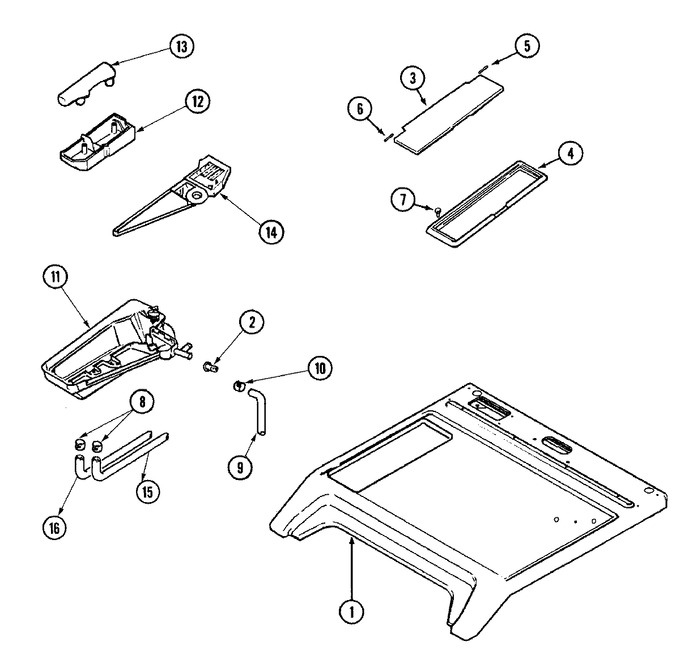

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22002116		Cover, Top (wht)	10	Appelez-nous	-
1	22003584		Cover, Top (wht-as Pk)	67	Appelez-nous	-
2	22001900		Preventer, Back Flow	10			$ 13.67
3	22002493		Lid, Dispenser (wht)	10	Appelez-nous	-
4	22002290		Bezel, Dispenser (wht)	10			$ 30.56
5	WP6-912678		Pin, Hinge (long)   (Replaces: Y912678)	10			$ 6.82
6	Y912679		Pin, Hinge (short)	10			$ 3.98
7	W11772394		Screw, Dispenser   (Replaces: 22002230)	10		Immediately	$ 10.94
8	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
9	22002556		Hose, Shower	10	Appelez-nous	-
10	WP596669		Hose Clamp - 1-1/16 Inch   (Replaces: 202515)	10		Immediately	$ 7.56
11	22002768		Dispenser Bottom	10	Appelez-nous	-
12	22002265		Cup, Siphon	10			$ 25.22
13	22002266		Cap, Siphon	10			$ 37.23
14	22002555		Flume, Dispenser	10	Appelez-nous	-
15	22002551		Hose, Bleach	10	Appelez-nous	-
16	22003634		Hose, Fabric Softener	10	Appelez-nous	-
