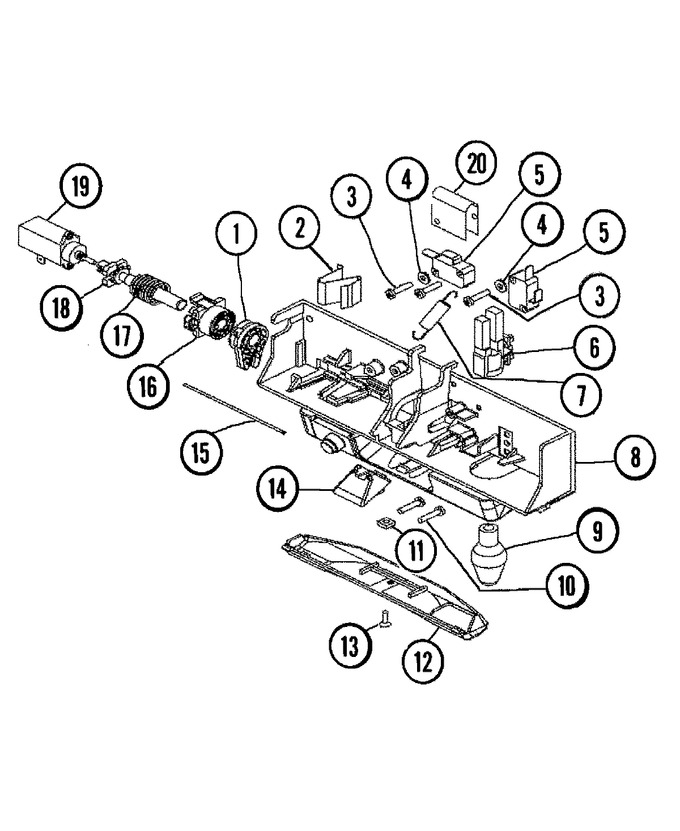

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003716		Rotating Gear, Latch	10			$ 5.51
2	22003717		Spring, Latch	10			$ 0.80
3	22001352		Screw, Check Switch	10	Appelez-nous	-
4	22002165		Washer, Door Lock Switch	10	Appelez-nous	-
5	WP22002162		Switch, Door Lock Spin Enable   (Replaces: 22002162)	10		Immediately	$ 51.28
6	22002433		Bulb Holder Assembly	10	Appelez-nous	-
7	22002158		Spring, Gear Return	10	Appelez-nous	-
8	22003067		Switch Holder Assembly	10			$ 72.03
9	WP22002263		Lamp (10 Watt)   (Replaces: 22002263)	10		Immediately	$ 12.29
10	22003719		Screw, Latch	10	Appelez-nous	-
11	22003720		Nut, Latch	10	Appelez-nous	-
12	22002434		Cover, Bulb	10	Appelez-nous	-
13	WP241877		Screw   (Replaces: 22002435)	10			$ 3.56
14	22003055		Ramp, Door Hoop	10			$ 27.77
15	22002164		Cable, Door	10	Appelez-nous	-
16	22003715		Sliding Gear, Latch	10			$ 5.84
17	22003721		Spring, Axle / Latch	10			$ 6.56
18	22003718		Axle, Latch	10			$ 5.84
19	12002535		Motor, Wax   (Replaces: 22002119)	10		Immediately	$ 20.30
20	22004256		Shield	10	Appelez-nous	-
