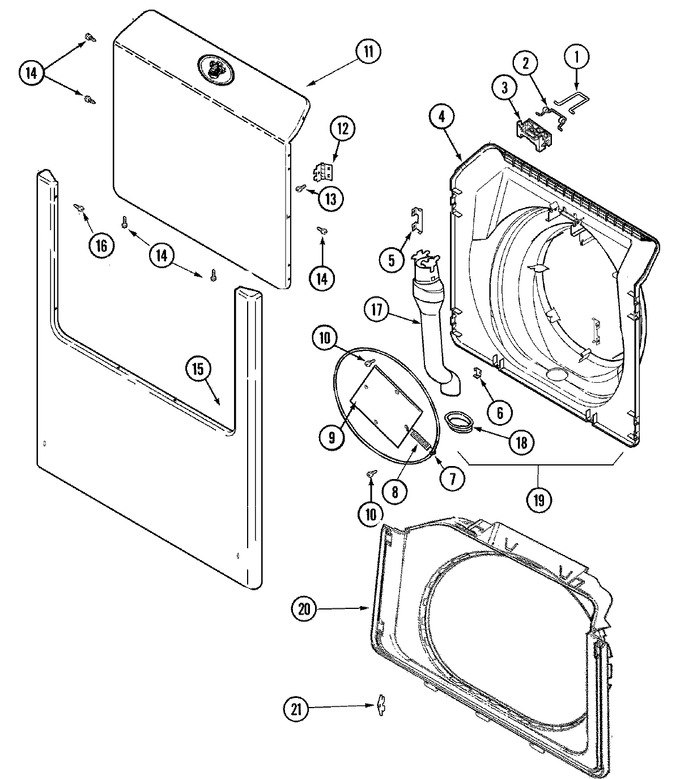

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003908		Vapor Barrier	86	Appelez-nous	-
1	22003222		Hoop, Lock	10	Appelez-nous	-
1	22002443		Label, Safety	10	Appelez-nous	-
2	22002003		Spring, Latch	10			$ 5.70
3	22002168		Support, Lock Hoop	10			$ 6.85
4	22003800		Inner Door/vented (aspk-wht)	76			$ 156.60
4	22003076		Door, Inner (wht)	10	Appelez-nous	-
5	22002038		Clip, Door (double)	10	Appelez-nous	-
6	22002039		Clip, Door (single)	10			$ 8.15
7	22002104		Wireframe	10	Appelez-nous	-
8	22002356		Spring, Plate	10	Appelez-nous	-
9	22002094		Plate	10	Appelez-nous	-
10	22002007		Screw	10	Appelez-nous	-
11	22001817		Sheet, Sound Damper (ft. Pnl)	10			$ 22.19
11	33001748		Door, Outer (wht)	10	Appelez-nous	-
12	WP33001787		Screw, Hinge   (Replaces: 33001787)	75			$ 10.45
12	33001764		Cover, Hinge Hole (wht)	75			$ 36.41
12	22002095		Cover, Hinge (wht)	10	Appelez-nous	-
12	WP22002798		Hinge, Door   (Replaces: 22002798)	10			$ 77.72
13	WP98006631		Screw   (Replaces: 22002062)	10			$ 6.26
14	22002063		Screw No.8-18ab Wafer Hd	10			$ 5.48
15	22002239		Clip, Lower Front Panel	10			$ 5.84
15	22003511		Insulation	10	Appelez-nous	-
15	22002241		Panel, Front (wht)	10	Appelez-nous	-
15	W11573574		Screw   (Replaces: 22001995)	10		Immediately	$ 12.62
16	22002244		Clip, Grounding	10	Appelez-nous	-
16	22002012		Screw, Hinge	10			$ 5.48
17	22003576		Vent Tube Assy.	10	Appelez-nous	-
18	WP22003075		Grommet, Vent Tube   (Replaces: 22003075)	10			$ 50.41
19	22003083		Liner, Door Assy W/vent (wht)	10			$ 291.08
20	22002234		Shroud, Plastic (wht)	10	Appelez-nous	-
21	22002095		Cover, Hinge (wht)	10	Appelez-nous	-
