Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3176700 Frame, Front Appelez-nous -
2 307985 Pin, Hinge Ear (2) Special Order $ 29.54

3 309111 Snubber, Door (2) Appelez-nous -
4 308306 Pushnut (2) Appelez-nous -
5 310770 Insulation Tray Appelez-nous -
6 311006 Side Wrapper (right Side) Appelez-nous -
6 311009 Side Wrapper (left Side) Appelez-nous -
6 WP488729 Screw (14)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 WP488729 Screw (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

7 311774 Support, Side Wrapper (4) Appelez-nous -
8 3185197 Seal, Door Appelez-nous -
9 3183796 Baffle, Top Insulation Appelez-nous -
9 WP488729 Screw (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

10 310685 Side Trim L.h. Appelez-nous -
10 310689 Side Trim (r.h.) Appelez-nous -
10 WP488729 Screw (8)   (Replaces: 3148107) In-Stock Immediately $ 7.01

11 311056 Screw, Ground (3) Appelez-nous -
11 WP681414 Screw, Ground (6)   (Replaces: 343641) In-Stock Immediately $ 7.07

11 3182032 Oven (30`` Pyro) Appelez-nous -
12 310713 Bracket, Oven Mounting (2) Appelez-nous -
13 3182814 Button, Plug Appelez-nous -
14 98005642 Clip, Therm Bulb (2)   (Replaces: 313382) In-Stock Immediately $ 74.64

15 3185662 Hinge, Ear (right Side) Appelez-nous -
15 3185663 Hinge, Ear (left Side) Appelez-nous -
16 WP308544 Screw (4)   (Replaces: 308544) In-Stock Immediately $ 6.98

16 310659 Plate, Side Panel (2) Appelez-nous -
17 3185664 Channel Arm (2) Special Order $ 54.97

18 WP307986 Pin, Hinge (2)   (Replaces: 307986) Special Order $ 11.78

19 307594 Ring, Retainer (2) Appelez-nous -
20 WP3184533 Gasket, Light   (Replaces: 3184533) In-Stock Immediately $ 7.73

21 WP308125 Anchor, Spring (2)   (Replaces: 308125) Special Order $ 10.94

22 WP308126 Spring, Oven Door (2)   (Replaces: 308126) Special Order $ 38.15

23 312697 Tube, Vent Appelez-nous -
24 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

24 WP90767 Screw   (Replaces: 90767) In-Stock Immediately $ 7.04

24 310839 Eliminator, Smoke Appelez-nous -
25 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

25 310662 Plate, Cover Appelez-nous -
26 WP308180 Unit, Bake (240v)   (Replaces: 661170) Special Order $ 96.92

26 3150532 Screw (2) Appelez-nous -
27 WP660579 Unit, Broil (240v)   (Replaces: 3148040) Special Order $ 140.80

28 308043 Screw (2) Appelez-nous -
28 W11594027 Oven Light Assy.   (Replaces: 3150505) In-Stock Immediately $ 78.31

29 8009 Bulb, Oven Light   (Replaces: 311255) In-Stock Immediately $ 16.80

30 3184208 Plate, Cover Appelez-nous -
32 3183005 Coverplate (2) Appelez-nous -
32 WP488729 Screw (2)   (Replaces: 313638) In-Stock Immediately $ 7.01

33 WP488729 Screw (2)   (Replaces: 3148107) In-Stock Immediately $ 7.01

33 3171148 Latch Assembly Appelez-nous -
33 311056 Screw (2) Appelez-nous -
34 308185 Safety Switch Appelez-nous -
34 98106 Screw (2) Appelez-nous -
35 309245 Insulator, Switch Appelez-nous -
36 309258 Screw (2) Appelez-nous -
36 313035 Terminal, Shield Appelez-nous -
37 308422 Screw (2) Appelez-nous -
37 310825 Latch, Handle Appelez-nous -
38 3184039 Knob, Latch Handle Appelez-nous -
38 3183294 Screw Appelez-nous -
39 310345 Switch, Door Special Order $ 94.86

47 309029 Screw (3) Appelez-nous -
47 3150349 Grill, Bottom Appelez-nous -
52 3182052 Panel, Back Appelez-nous -
52 WP488729 Screw (6)   (Replaces: 3148107) In-Stock Immediately $ 7.01

53 308043 Screw (2) Appelez-nous -
53 WP112432 Nut, (3)   (Replaces: 112432) Special Order $ 7.16

53 3147001 Screw Appelez-nous -
53 WP8203546 Block, Terminal   (Replaces: 3184673) In-Stock Immediately $ 27.12

54 310458 Cover, Top & Bottom Appelez-nous -
55 311592 Angle, Support (2) Appelez-nous -
55 WP488729 Screw (4)   (Replaces: 3148107) In-Stock Immediately $ 7.01

56 311012 Cover, Rear Appelez-nous -
56 WP488729 Screw (10)   (Replaces: 3148107) In-Stock Immediately $ 7.01

59 4396923 Pan, Broiler   (Replaces: 3147845) In-Stock Immediately $ 52.04

60 4396923 Grid, Broiler Pan   (Replaces: 3147563) In-Stock Immediately $ 52.04

61 3185440 Rack, Oven Appelez-nous -
62 3185441 Rack, Oven Offset Appelez-nous -
65 3149142 Shield, Air Appelez-nous -
65 309080 Screw Appelez-nous -
66 3148669 Switch, Lock Appelez-nous -
67 310435 Insulation, Oven Appelez-nous -
67 3149328 Insulation, Top Appelez-nous -
67 310433 Insulation, Wrap Appelez-nous -
67 307748 Screw (2) Appelez-nous -
67 3147864 Insulator, Switch Appelez-nous -
LIT3150702 Use & Care Guide (oven) Appelez-nous -
LIT3149670 Cooking Guide Appelez-nous -
LIT4174310 Repair Parts List Appelez-nous -
LIT3147005 Cookbook Appelez-nous -
LIT3147438 Use & Care Guide (microwave) Appelez-nous -
LIT3181679 Installation, Instructions Appelez-nous -
LIT3149135 Tech Sheet Appelez-nous -
W10841140 Silastic Adhesive   (Replaces: 307576) In-Stock Immediately $ 24.92

3171507 Mounting Hardware Appelez-nous -
LIT3147577 Label, Auto Cook Guide Appelez-nous -
LIT3147571 Label, Defrost Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

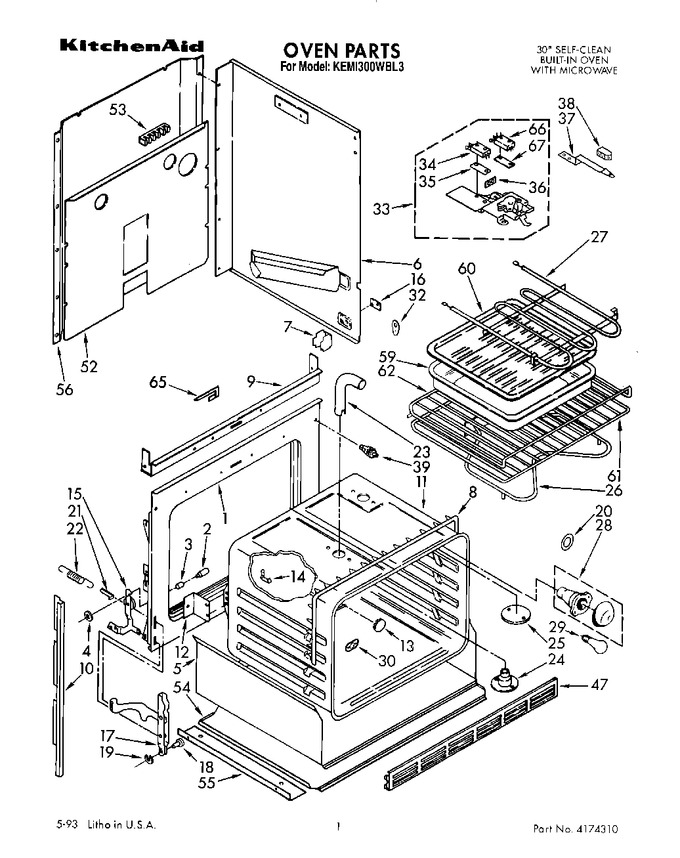

Diagram for KEMI300WBL3
