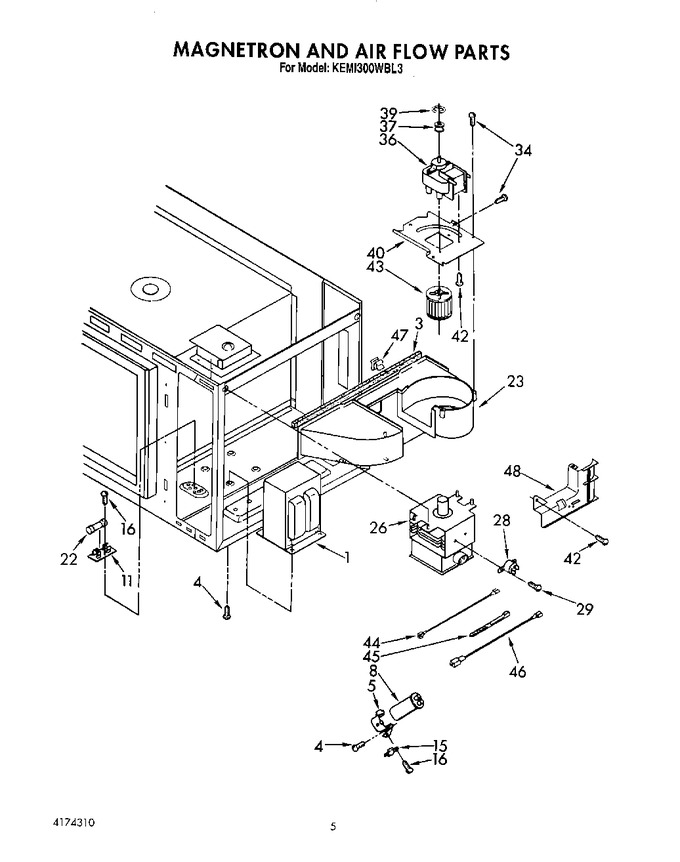

03 - Magnetron And Air Flow


04 - Stirrer Drive


05 - Microwave Door And Latch


06 - Microwave Cabinet And Shelf


07 - Oven Door


08 - Control Panel


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3147272		Transformer		Appelez-nous	-
3	313752		Seal, Foam		Appelez-nous	-
4	312185		Screw (4) Hex Washer W/ground Ring (10)		Appelez-nous	-
5	312619		Bracket, Capacitor		Appelez-nous	-
8	661004		Capacitor		Appelez-nous	-
11	4454949		Block, Fuse   (Replaces: 314121)				$ 81.63
15	313830		Rectifier, High Voltage		Appelez-nous	-
16	312713		Screw (5)		Appelez-nous	-
22	WPW10017410		Fuse (20 Amp)   (Replaces: 309796)			Immediately	$ 19.05
23	313578		Air Duct (horizontal)		Appelez-nous	-
26	660595		Magnetron		Appelez-nous	-
28	661165		Thermal Protector		Appelez-nous	-
29	312782		Screw (2)		Appelez-nous	-
34	346893		Screw (5)		Appelez-nous	-
36	313641		Motor		Appelez-nous	-
37	311922		Pulley, Motor		Appelez-nous	-
39	311999		``e`` Ring		Appelez-nous	-
40	313601		Bracket, Motor		Appelez-nous	-
42	WP486579		Screw   (Replaces: 311865)				$ 6.61
43	346893		Screw (3)		Appelez-nous	-
43	3147223		Wheel, Blower		Appelez-nous	-
44	313130		Jumper, High Voltage Black 6-5/16``		Appelez-nous	-
45	WPW10339879		Cable Tie (3)   (Replaces: 309330)				$ 7.11
46	3147863		High Voltage Lead, Gray 7-11/16`` (2)		Appelez-nous	-
47	312713		Screw		Appelez-nous	-
47	311311		Clip		Appelez-nous	-
48	346893		Screw		Appelez-nous	-
48	3147262		Extension, Air Duct		Appelez-nous	-
