SELECT A DIAGRAM

01 - Oven, Literature


02 - Microwave Cabinet


03 - Magnetron And Air Flow


04 - Stirrer Drive


05 - Microwave Door And Latch


06 - Microwave Cabinet And Shelf


07 - Oven Door


08 - Control Panel


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

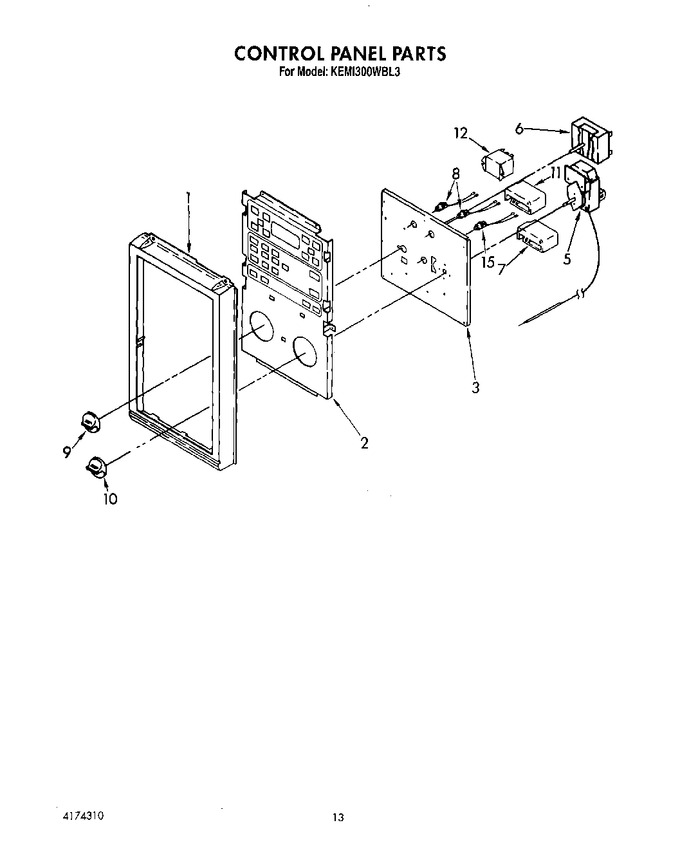

1	3182414		Frame, Control Panel		Appelez-nous	-
1	313818		Screw (4)		Appelez-nous	-
2	3148276		Switch Membrane (control Module)		Appelez-nous	-
2	308119		Screw (6)		Appelez-nous	-
3	308119		Screw (4)		Appelez-nous	-
3	3147282		Bracket, Control (mounting)		Appelez-nous	-
5	WP313808		Screw (2)   (Replaces: 311932)				$ 6.84
5	3148932		Thermostat		Appelez-nous	-
6	3148420		Switch, Selector		Appelez-nous	-
6	4159448		Screw (2)		Appelez-nous	-
7	314215		Screw		Appelez-nous	-
7	314210		Switch, Bake		Appelez-nous	-
8	3147517		Light, Indictor (4)		Appelez-nous	-
9	3149106		Knob, Control (2)		Appelez-nous	-
10	3149116		Knob, Control		Appelez-nous	-
10	WP693995		Hex Washer   (Replaces: 693995)			Immediately	$ 6.47
11	314209		Switch, Broil		Appelez-nous	-
11	312006		Screw (2)		Appelez-nous	-
12	246131		Screw (2)		Appelez-nous	-
12	314125		Relay, Power		Appelez-nous	-
15	313818		Screw (4)		Appelez-nous	-
15	3149034		Light, Indicator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
