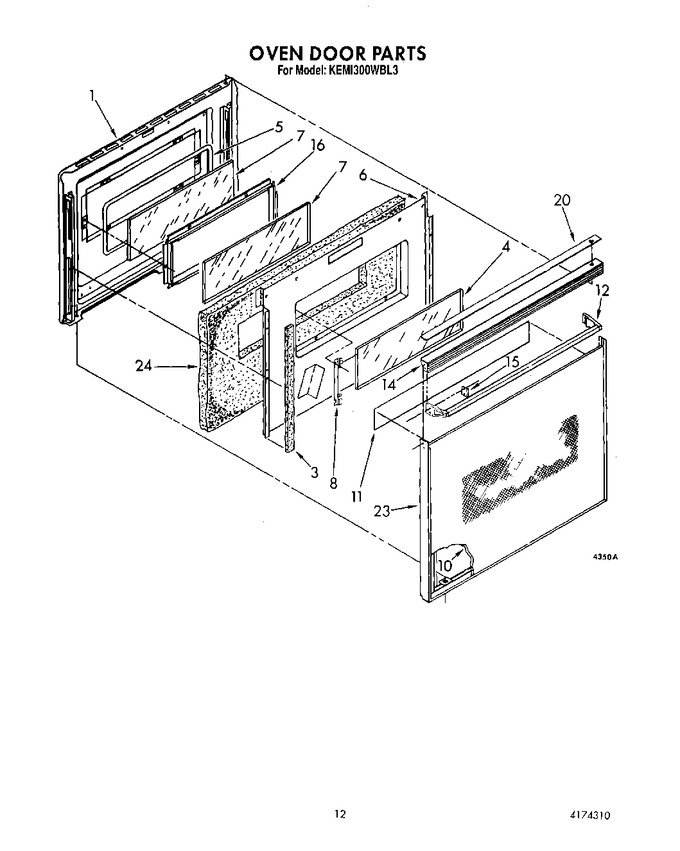

SELECT A DIAGRAM

01 - Oven, Literature


02 - Microwave Cabinet


03 - Magnetron And Air Flow


04 - Stirrer Drive


05 - Microwave Door And Latch


06 - Microwave Cabinet And Shelf


07 - Oven Door


08 - Control Panel


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw (6)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Flange (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Door				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Outside & Inside   (Replaces: 3169203)				$ 135.71
8	3148443		Screw (4)		Appelez-nous	-
8	3148187		Retainer, Glass (2)		Appelez-nous	-
10	3148185		Glass, Panel		Appelez-nous	-
11	247326		Screw (2)		Appelez-nous	-
11	3148184		Foil, Handle		Appelez-nous	-
12	WP308685		Screw (5)   (Replaces: 3182346)			Immediately	$ 7.08
12	3183402		Handle, Door		Appelez-nous	-
14	3148223		Top, Door		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
15	WP355515		Screw (4)   (Replaces: 355515)				$ 6.90
16	3148234		Frame, Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
20	3181363		Cap, Top		Appelez-nous	-
20	247326		Screw (2)		Appelez-nous	-
23	3148235		Frame, Door		Appelez-nous	-
24	3147951		Insulation, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
