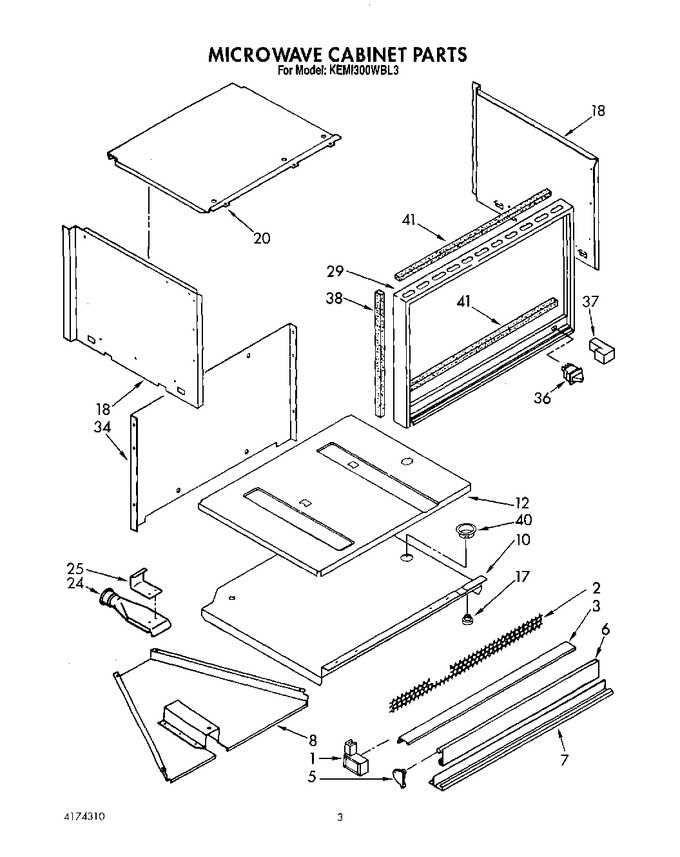

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3148929 | End Cap, R.h. |
|
- | |||||
| 1 | 3148928 | End Cap, L.h. |
|
- | |||||
| 1 | 342043 | Screw (2) |
|
- | |||||
| 2 | 312432 | Trim, Oven Vent |
|
- | |||||
| 3 | 3148678 | Trim, Top |
|
- | |||||
| 3 | WP965173 | Screw (2) (Replaces: 246132) |
|
Immediately | $ 9.65 | ||||
| 3 | 342043 | Screw (2) |
|
- | |||||
| 5 | 3148697 | End Trim, Vent Door L.h. |
|
- | |||||
| 5 | 3148698 | End Trim, Vent Door R.h. |
|
- | |||||
| 6 | 3182337 | Door, Vent |
|
- | |||||
| 7 | 342043 | Screw (2) |
|
- | |||||
| 7 | 302251 | Screw |
|
- | |||||
| 7 | 3148618 | Trim, Bottom |
|
- | |||||
| 8 | 3170178 | Box Air |
|
- | |||||
| 8 | WP488729 | Screw (4) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 10 | WP488729 | Screw (8) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 10 | 3147494 | Support Plate |
|
- | |||||
| 12 | 3147498 | Panel, Support |
|
- | |||||
| 17 | 309552 | Snap Bushing |
|
- | |||||
| 18 | WP488729 | Screw (6) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 18 | 3147492 | Side Panel, R.h. |
|
- | |||||
| 18 | 3147493 | Side Panel, L.h. |
|
- | |||||
| 20 | 3147499 | Panel, Top |
|
- | |||||
| 20 | WP488729 | Screw (8) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 20 | 302251 | Screw |
|
- | |||||
| 20 | 309100 | Screw (2) |
|
- | |||||
| 24 | 312696 | Vent Tube |
|
- | |||||
| 25 | 254225 | Screw (2) |
|
- | |||||
| 25 | 312698 | Support, Vent Tube |
|
- | |||||
| 29 | 3149798 | Frame |
|
- | |||||
| 34 | 3147491 | Cover, Rear |
|
- | |||||
| 34 | WP488729 | Screw (10) (Replaces: 3148107) |
|
Immediately | $ 7.01 | ||||
| 36 | WP4314961 | Switch, Rocker (Replaces: 314134) |
|
$ 80.53 | |||||
| 37 | 3147750 | Seal, Foam (2) |
|
- | |||||
| 38 | 3147595 | Seal, Foam (2) |
|
- | |||||
| 40 | 3147647 | Bushing, Snap |
|
- | |||||
| 41 | 3147596 | Seal, Foam (2) |
|
- |
