SELECT A DIAGRAM

01 - Oven, Literature


02 - Microwave Cabinet


03 - Magnetron And Air Flow

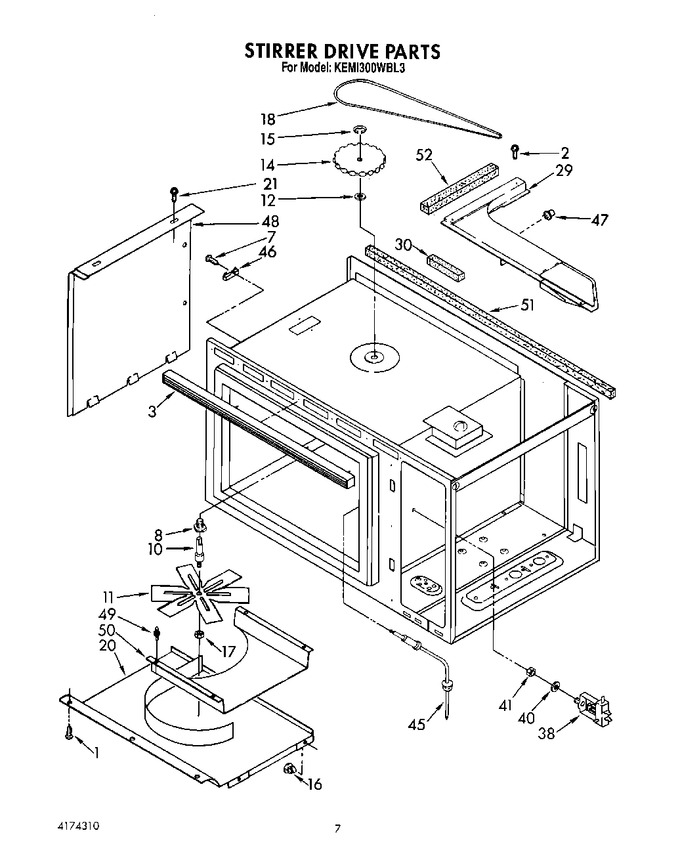

04 - Stirrer Drive


05 - Microwave Door And Latch


06 - Microwave Cabinet And Shelf


07 - Oven Door


08 - Control Panel


09 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488729		Screw (6)   (Replaces: 3148107)			Immediately	$ 7.01
2	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
3	3150025		Screw (3)		Appelez-nous	-
3	3149301		Grill, Air		Appelez-nous	-
7	312713		Screw		Appelez-nous	-
8	312023		Bushing, Stirrer		Appelez-nous	-
10	312026		Shaft, Stirrer		Appelez-nous	-
11	313595		Stirrer Blade		Appelez-nous	-
12	312025		Washer, Nylon		Appelez-nous	-
14	311923		Pulley, Stirrer Blade		Appelez-nous	-
15	311999		``e`` Ring		Appelez-nous	-
16	313740		Fastener (4)		Appelez-nous	-
17	WP487939		Nut, Standard   (Replaces: 311721)				$ 6.95
18	WP313646		Belt, Drive   (Replaces: 313646)				$ 76.05
20	313563		Stirrer Cover		Appelez-nous	-
20	313816		Screw (3)		Appelez-nous	-
21	310423		Fastener		Appelez-nous	-
29	3147003		Baffle, Air		Appelez-nous	-
30	313753		Seal, Foam		Appelez-nous	-
38	661209		Probe Jack		Appelez-nous	-
40	313105		Washer Probe		Appelez-nous	-
41	313104		Nut		Appelez-nous	-
45	313527		Probe, Temperature		Appelez-nous	-
46	313855		Fuse, Thermal		Appelez-nous	-
46	312713		Screw		Appelez-nous	-
47	3147060		Sensor, Gas		Appelez-nous	-
47	313818		Screw (2)		Appelez-nous	-
48	3147004		Cover, Side		Appelez-nous	-
48	WP488729		Screw (4)   (Replaces: 313638)			Immediately	$ 7.01
49	313739		Support (4)		Appelez-nous	-
50	313735		Plate, Tuning		Appelez-nous	-
51	313752		Seal, Foam		Appelez-nous	-
52	3147599		Seal, Foam		Appelez-nous	-
