Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 313614 Trim, Shelf (front) Appelez-nous -
2 313615 Trim, Shelf (rear) Appelez-nous -
3 313639 Shelf, Microwave Appelez-nous -
4 330514 Socket, Complete Appelez-nous -
4 312713 Screw (2) Appelez-nous -
5 WP3395618 Bulb, Oven Light   (Replaces: 313969) In-Stock Immediately $ 71.33

5 312713 Screw (2) Appelez-nous -
6 WP3149478 Support (4)   (Replaces: 313653) Special Order $ 8.64

7 313663 Rack, Wire Appelez-nous -
8 3171640 Cavity Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

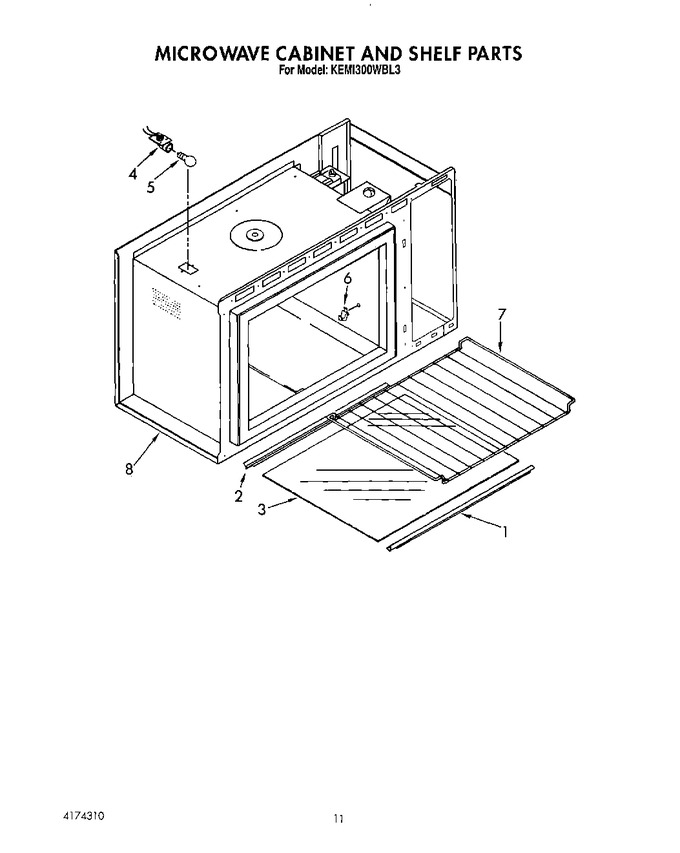

Diagram for KEMI300WBL3
