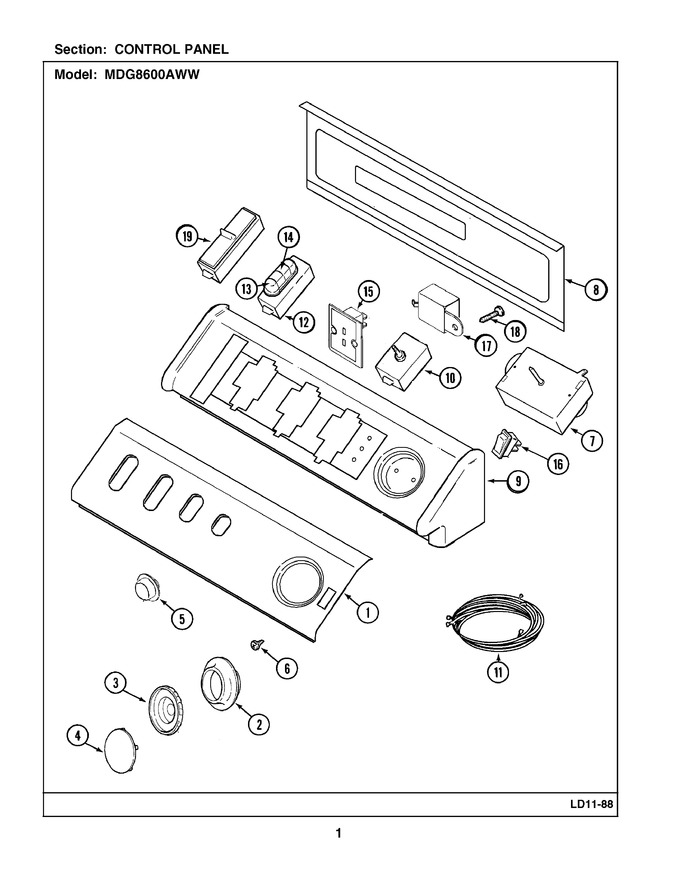

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002594		Panel, Control (wht) Note: Panel, Control (wht)		Appelez-nous	-
2	WP33001621		Skirt, Timer Dial (wht)   (Replaces: 33001621)			Immediately	$ 23.18
3	WP22001659		Timer Knob - Grey   (Replaces: 22001659)				$ 26.38
4	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)				$ 7.85
5	33001619		Button, Push To Start (wht) Note: Button, Push To Start (wht)		Appelez-nous	-
6	WP90767		Screw, Timer   (Replaces: 33001690)			Immediately	$ 7.04
7	WP33001730		Timer   (Replaces: 33001730)			Immediately	$ 329.07
7	WP33002676		Timer, Electronic Dry   (Replaces: 33002676)				$ 325.65
8	22002529		Console Back Panel		Appelez-nous	-
9	33002286		Console (wht)		Appelez-nous	-
10	33001861		Switch, Push To Start (wht)		Appelez-nous	-
11	33002420		Wire Harness, Main (gas) Note: Wire Harness, Main (gas)		Appelez-nous	-
12	33002414		Switch, Option 4 Pos (wht)		Appelez-nous	-
13	22001788		Button, Switch (wht-end)		Appelez-nous	-
14	22001789		Button, Switch (wht-mdl)		Appelez-nous	-
15	33002389		Dryness Display Control (wht) Note: Display, Dryness (wht)				$ 81.10
16	33002417		2 Pos. Rocker Switch (wht) Note: Switch, Rocker (wht)		Appelez-nous	-
17	33001848		Signal, End Of Cycle (chime)		Appelez-nous	-
18	WP90767		Screw, End Of Cycle----na   (Replaces: 33001860)			Immediately	$ 7.04
19	33001656		Switch, Temp (elec)(wht) Note: Switch, Inf. Temp (wht)				$ 122.64
20	22001403		Light, Indicator (250v)		Appelez-nous	-
NI	33002582		Manual, Use & Care (tri)		Appelez-nous	-
NI	WP489128		Screw   (Replaces: 216423)				$ 9.79
NI	WP22001948		Lens, Indicator Light   (Replaces: 22001948)				$ 11.42
NI	Y22002339		Screw Note: Screw, Control Panel		Appelez-nous	-
