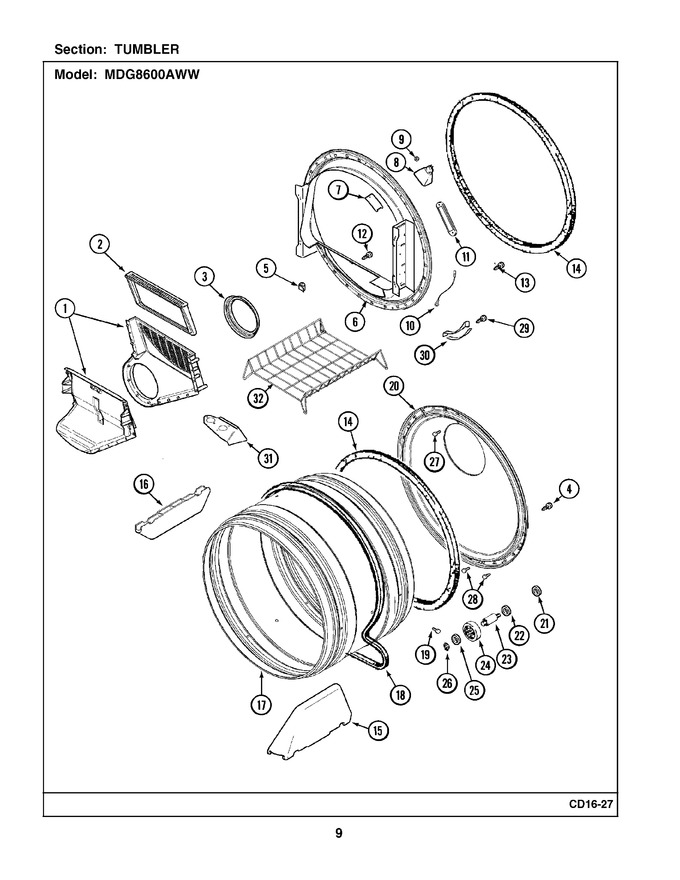

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001799		Outlet Duct Assembly Note: Outlet Duct Assembly				$ 81.40
2	WP33001808		Filter, Lint   (Replaces: 33001808)			Immediately	$ 54.12
3	33001758		Seal, Blower		Appelez-nous	-
4	33002190		Screw (no.10-3/8``)		Appelez-nous	-
5	WP488826		Clip, Wire Harness   (Replaces: 310376)				$ 5.60
6	33001868		Front, Tumbler Front W/sensor Note: Front, Tumbler (w/seal) (incl. Ensor/ Light Assy)		Appelez-nous	-
7	33001869		Lens, Drum Light		Appelez-nous	-
8	33001870		Holder, Lamp (w/housing) Note: Lamp (w/housing & Holder)		Appelez-nous	-
9	214872		Palnut, End Cap Note: Nut, Lamp Holder		Appelez-nous	-
10	303711		Sensor Ground Wire Note: Sensor, Ground Wire		Appelez-nous	-
11	33001809		Sensor Bar Assy.		Appelez-nous	-
12	312311		Screw----na Note: Screw, Outlet Duct (phillips)		Appelez-nous	-
13	WP33002917		Screw (hex Head) Note: Screw, Duct To Tumbler (hex)   (Replaces: 33001855)			Immediately	$ 6.90
14	WP33001807		Seal, Tumbler   (Replaces: 33001807)			Immediately	$ 21.39
15	WP33002032		Baffle (tall)   (Replaces: 33001756)			Immediately	$ 37.95
16	WP33001755		Baffle (short)   (Replaces: 33001755)			Immediately	$ 30.85
17	33001889		Tumbler				$ 325.04
18	WP33002535		Belt, Tumbler   (Replaces: 33001777)			Immediately	$ 30.78
19	33001788		Screw, Baffle		Appelez-nous	-
20	33001801		Back, Tumbler (w/seal)				$ 162.40
21	WP33001443		Nut, Hex (roller Shaft)   (Replaces: 33001443)				$ 7.15
22	WP312535		Washer, Spring (roller Shaft)   (Replaces: Y313347)			Immediately	$ 10.25
23	312948		Shaft, Tumbler Roller		Appelez-nous	-
24	12001541		Bearing & Roller Assembly Note: Roller (w/bearing)   (Replaces: Y303373)			Immediately	$ 27.92
25	WP312535		Washer, Roller Shaft   (Replaces: 312535)			Immediately	$ 10.25
26	WP9703438		Ring, Retaining   (Replaces: 410233)			Immediately	$ 3.81
27	210932		Screw, No.8 X 9/16 Ctsk Note: Screw, Inlet Duct		Appelez-nous	-
28	WP489128		Screw Note: Screw, Inlet Duct   (Replaces: 22001996)				$ 9.79
29	WP210720		Rivet Note: Rivet, Tumbler   (Replaces: 210720)				$ 12.14
30	306508		Tumbler Bearing Kit			Immediately	$ 20.77
32	33001917		Rack, Drying Note: Rack, Drying		Appelez-nous	-
NI	WP3177991		Screw Note: Screw, Sensor Bar Assembly   (Replaces: 22001078)			Immediately	$ 6.47
NI	WP22002263		Lamp (10 Watt)   (Replaces: 22002263)			Immediately	$ 12.29
NI	33001871		Screw Note: Screw, Drum Light		Appelez-nous	-
NI	WP90767		Screw Note: Screw, Ground Wire Sensor   (Replaces: 211294)			Immediately	$ 7.04
