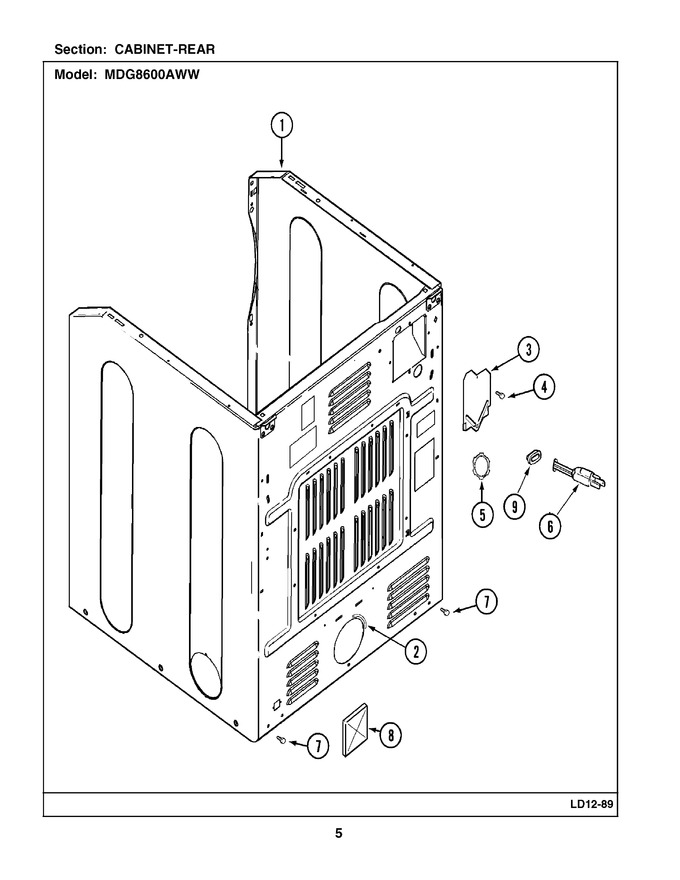

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22002548		Cabinet Assy. (wht)		Appelez-nous	-
1	22003639		Cabinet Assy. (wht As Pk)		Appelez-nous	-
1	22003582		Cabinet, Assy. (wht-as Pk)		Appelez-nous	-
2	33002283		Guard, Exhaust Duct		Appelez-nous	-
3	33001795		Cover, Terminal Block		Appelez-nous	-
4	W11573574		Screw Note: Screw, Terminal Block Cover   (Replaces: 22001995)			Immediately	$ 12.62
6	33002494		Cord, Power (as Wrap) Note: Cord, Power (gas)		Appelez-nous	-
7	W11573574		Screw Note: Screw, Cabinet   (Replaces: 22001995)			Immediately	$ 12.62
8	33001702		Flap, Pipe		Appelez-nous	-
9	211881		Grommet, Cord		Appelez-nous	-
NI	22003367		Hinge, Plastic		Appelez-nous	-
NI	W11573574		Screw Note: Screw, Hinge   (Replaces: 22001995)			Immediately	$ 12.62
