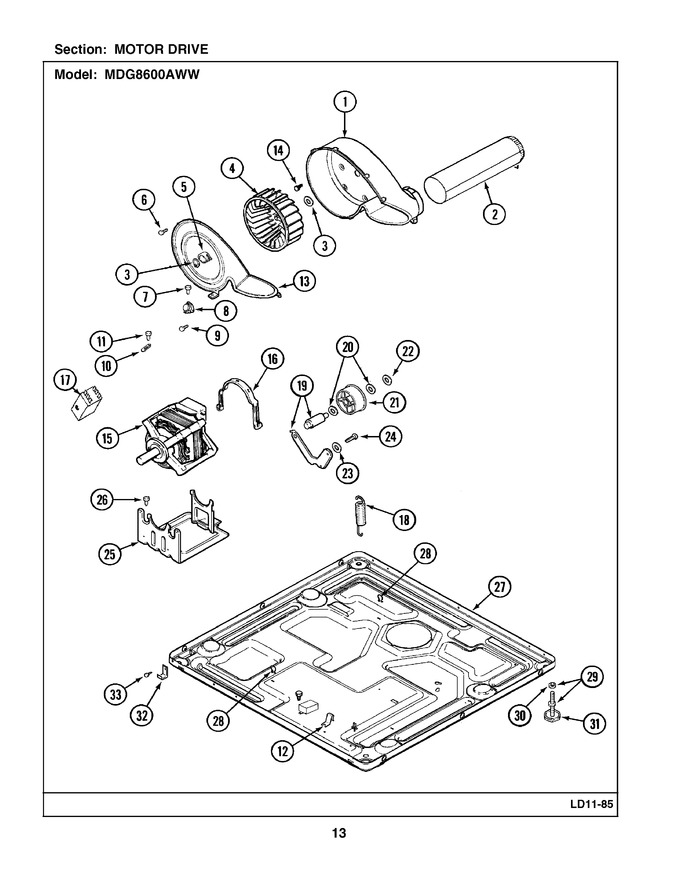

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP33001789		Housing, Blower   (Replaces: 33001789)				$ 128.00
2	33001800		Duct Assy., Exhaust		Appelez-nous	-
3	WP9703438		Ring, Retaining   (Replaces: 410233)			Immediately	$ 3.81
4	33001790		Wheel, Blower			Immediately	$ 44.73
5	WP312967		Clamp, Blower Housing   (Replaces: 312967)			Immediately	$ 10.68
6	WP33002917		Screw (hex Head) Note: Screw, Housing Cover   (Replaces: 33001855)			Immediately	$ 6.90
7	313561		Screw----na Note: Screw, Housing Cover		Appelez-nous	-
8	WP3387134		Thermostat, Multi Temp (gas) Note: Thermostat (gas)   (Replaces: 306910)			Immediately	$ 32.31
9	WP489128		Screw Note: Screw, Thermostat   (Replaces: 22001996)				$ 9.79
10	WP33001762		Fuse, Thermal (w` Bracket)   (Replaces: 33001762)			Immediately	$ 49.84
11	WP90767		Screw Note: Screw, Thermal Cut-off   (Replaces: 314848)			Immediately	$ 7.04
12	22002244		Clip, Grounding		Appelez-nous	-
13	33001796		Cover, Blower Housing		Appelez-nous	-
14	314818		Screw Note: Screw, Blower Housing		Appelez-nous	-
15	W10410997		Motor   (Replaces: 33002478)			Immediately	$ 165.38
15	WP33002795		Motor, Drive 60hz   (Replaces: 33002795)			Immediately	$ 229.65
16	WPY015825		Clip, Motor   (Replaces: Y015825)				$ 21.03
17	W10410997		Switch, Motor   (Replaces: 33001854)			Immediately	$ 165.38
18	33002459		Spring, Idler Note: Spring & Plug Kit 33002459   (Replaces: 33002460)				$ 6.94
19	WP6-3705180		Idler Arm & Shaft Assy.   (Replaces: 33001840)			Immediately	$ 44.32
20	WPY312527		Washer, Idler Shaft (qty-1)   (Replaces: 312527)			Immediately	$ 10.01
21	WP6-3700340		Bearing, Idler Assembly   (Replaces: 33001783)			Immediately	$ 24.98
22	WP354987		Retaining Ring, Idler Shaft   (Replaces: 312958)			Immediately	$ 10.58
23	WP315772		Sleeve, Idler Arm   (Replaces: 315772)			Immediately	$ 10.39
24	WPY014874		Screw   (Replaces: Y014874)				$ 6.98
25	33002466		Support, Motor		Appelez-nous	-
26	313561		Screw----na Note: Screw, Motor & Blower		Appelez-nous	-
27	33002465		Base, (lwr)----na		Appelez-nous	-
27	33002622		Base, (lwr)		Appelez-nous	-
28	410490		Spring, Wire Harness		Appelez-nous	-
29	WP233550		Adjustable Leg & Nut   (Replaces: 305086)				$ 7.16
30	WP62739		Nut   (Replaces: Y052740)				$ 6.85
31	314137		Foot, Rubber		Appelez-nous	-
32	22002239		Clip, Lower Front Panel				$ 5.84
33	310632		Screw Note: Screw, Clip		Appelez-nous	-
NI	W11573574		Screw Note: Screw, Exhaust Duct Assembly   (Replaces: 22001995)			Immediately	$ 12.62
NI	WP694674		Thermostat, Ultra Care   (Replaces: 33002409)			Immediately	$ 45.46
NI	33002461		Plug For Spring		Appelez-nous	-
NI	313561		Screw----na Note: Screw, Mount To Base		Appelez-nous	-
