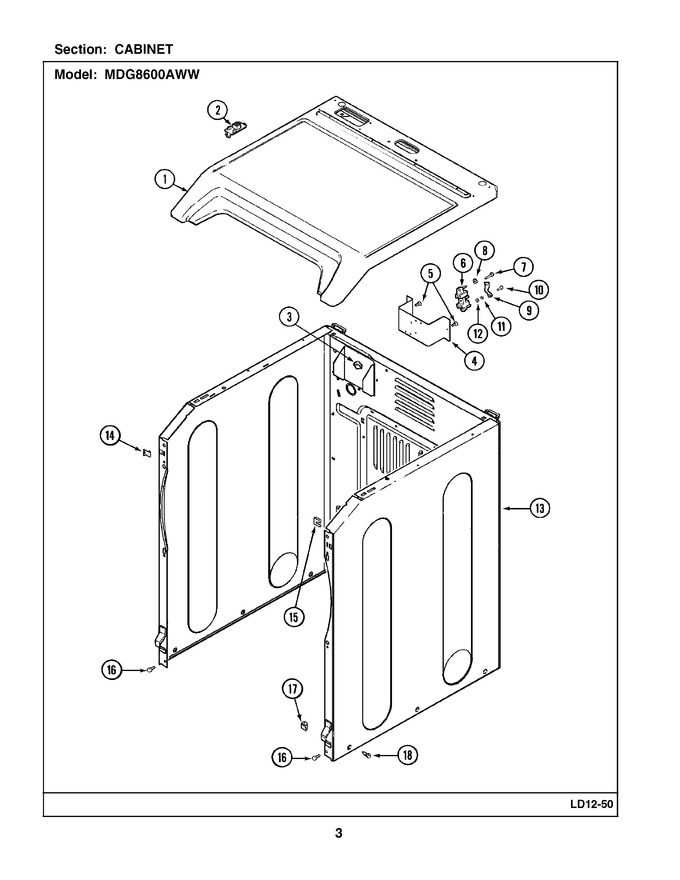

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33002627		Cover, Top (wht-as Pk)		Appelez-nous	-
1	33001865		Cover, Top (wht)		Appelez-nous	-
2	33001872		Pin, Locator		Appelez-nous	-
3	WP488826		Clip, Wire Harness   (Replaces: 310376)				$ 5.60
13	22003582		Cabinet, Assy. (wht-as Pk)		Appelez-nous	-
13	22002548		Cabinet Assy. (wht)		Appelez-nous	-
13	22003639		Cabinet Assy. (wht As Pk)		Appelez-nous	-
14	22002049		Clip Note: Clip, Front Panel				$ 8.40
15	213280		Front Panel Bracket/fastener Note: Retainer, Front Panel		Appelez-nous	-
16	W11573574		Screw Note: Screw, Front Panel   (Replaces: 22001995)			Immediately	$ 12.62
17	WP488826		Clip, Wire Harness   (Replaces: 310376)				$ 5.60
18	213007		Screw, Cabinet				$ 10.99
18	213007		Screw----na Note: Screw, Cabinet (truss)   (Replaces: 22003409)				$ 10.99
