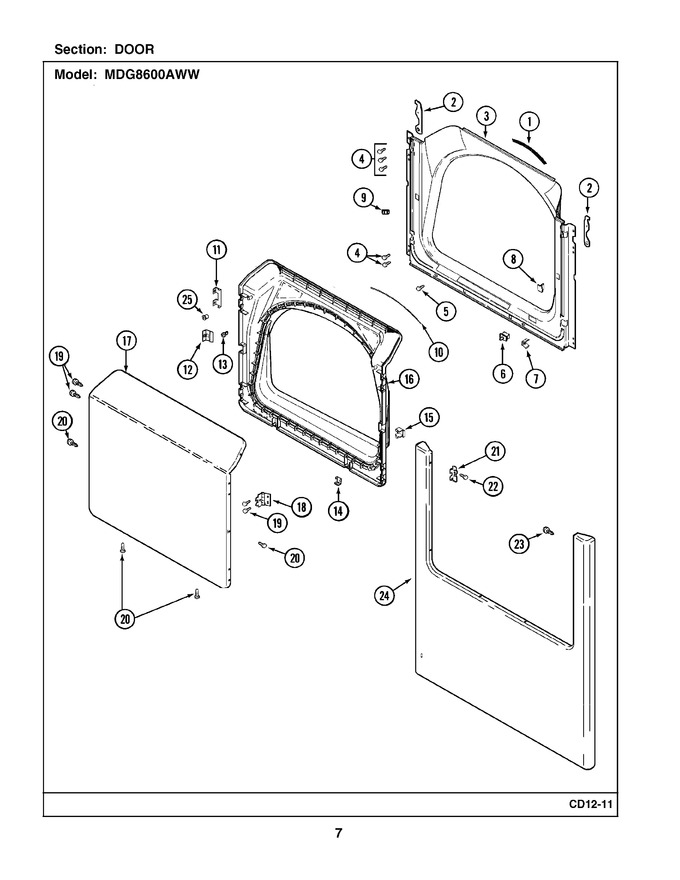

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33001767		Seal, Shroud				$ 25.05
2	33002386		Security Hook		Appelez-nous	-
3	33001778		Shroud (wht)		Appelez-nous	-
4	W11573574		Screw Note: Screw, Tumbler Front & Shroud   (Replaces: 22001995)			Immediately	$ 12.62
5	33001768		Screw, Shroud Note: Screw, Shroud & Outlet Duct		Appelez-nous	-
6	W10169313		Switch, Door   (Replaces: 33001508)			Immediately	$ 29.18
7	33001760		Bracket, Hinge		Appelez-nous	-
8	LA-1003		Plug, Door Catch   (Replaces: 33001174)			Immediately	$ 24.51
9	LA-1003		Catch, Door (female)   (Replaces: Y304578)			Immediately	$ 24.51
10	WP33002094		Seal, Door   (Replaces: 33002094)			Immediately	$ 113.69
11	22002038		Clip, Door (double)		Appelez-nous	-
12	WP33001793		Bracket, Strike   (Replaces: 33001793)				$ 7.43
13	33001761		Strike, Door (male)				$ 5.84
14	22002039		Clip, Door (single)				$ 8.15
15	33001763		Plug, Inner Door				$ 6.90
16	33001750		Door, Inner/ W Seal (wht)				$ 75.37
17	33002430		Panel, Door (wht-w/medallion)		Appelez-nous	-
18	WP33001759		Hinge, Door   (Replaces: 33001759)				$ 69.86
19	WP98006631		Screw   (Replaces: 22002062)				$ 6.26
20	22002063		Screw No.8-18ab Wafer Hd				$ 5.48
21	33001764		Cover, Hinge Hole (wht)				$ 36.41
22	WP33001787		Screw, Hinge Note: Screw, Hinge Hole Cover   (Replaces: 33001787)				$ 10.45
23	22002012		Screw, Hinge Note: Screw, Hinge Bracket				$ 5.48
24	22002241		Panel, Front (wht)		Appelez-nous	-
25	33001771		Bushing, Inner Door		Appelez-nous	-
NI	22001817		Sheet, Sound Damper (ft. Pnl)				$ 22.19
NI	22002039		Clip, Door (single)				$ 8.15
NI	22002063		Screw No.8-18ab Wafer Hd				$ 5.48
NI	306436		Catch, Door (w/plug)   (Replaces: 33001791)			Immediately	$ 10.17

    View Diagram in Separate Window       Print Part List
