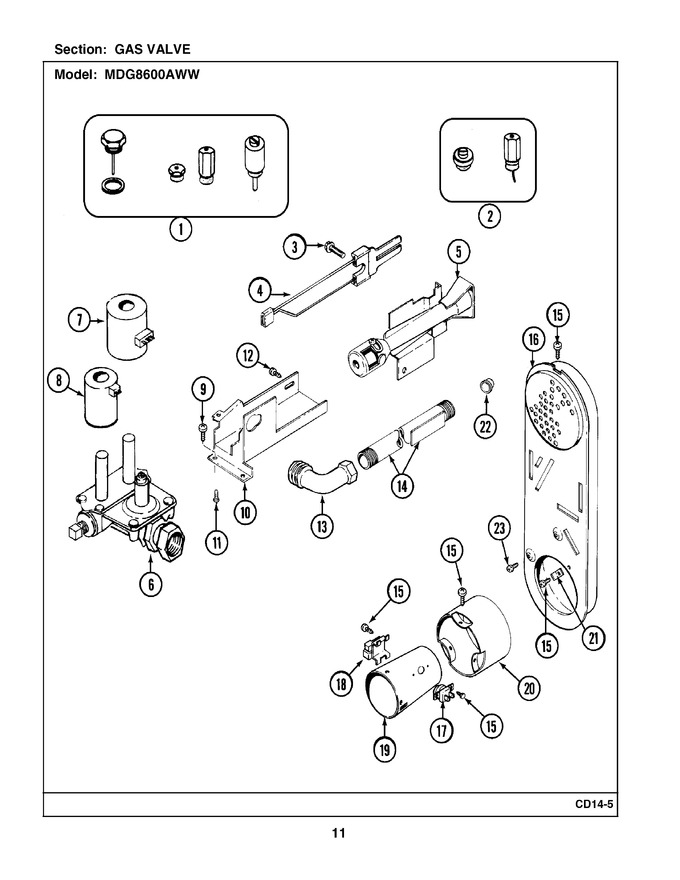

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 MAL9000AXX Conversion Kit (natural To Lp) Note: Conversion Kit (nat.to Lp)   (Replaces: 306195) Special Order $ 72.26

2 WP33002924 Conversion Kit (lp To Natural) Note: Conversion Kit (lp To Nat.)   (Replaces: 306204) Special Order $ 100.25

3 304971 Screw Note: Screw, Igniter Appelez-nous -
4 4391996 Igniter Assy, Gas Valve   (Replaces: 304970) In-Stock Immediately $ 42.36

5 WP33002793 Burner Assy.   (Replaces: 33001247) Special Order $ 161.35

6 WP306176 Valve, Gas   (Replaces: 306176) Special Order $ 335.71

7 58804A Coil, Holding & Booster   (Replaces: 306106) In-Stock Immediately $ 28.02

8 279834 Coil, Secondary   (Replaces: 306105) In-Stock Immediately $ 29.57

9 313561 Screw----na Note: Screw, Gas Valve Appelez-nous -
10 33001834 Bracket, Gas Valve----na Appelez-nous -
11 WP90767 Screw-gas Valve To Bracket Note: Screw, Gas Valve   (Replaces: 314568) In-Stock Immediately $ 7.04

11 WP90767 Screw Note: Screw, Gas Valve   (Replaces: 314082) In-Stock Immediately $ 7.04

12 310632 Screw Note: Screw, Gas Valve Appelez-nous -
13 3406051 Connector, Angle   (Replaces: 33001842) Special Order $ 90.15

14 33001735 Pipe & Bracket Assy. Appelez-nous -
15 WP90767 Screw Note: Screw, Duct   (Replaces: 211294) In-Stock Immediately $ 7.04

16 33001810 Duct Assy., Inlet (gas) Note: Inlet Duct Assembly Appelez-nous -
17 WP303395 Thermostat, Hi-limit (gas)   (Replaces: 303395) In-Stock Immediately $ 66.35

18 WP338906 Sensor, Radiant   (Replaces: 303377) In-Stock Immediately $ 46.72

19 33001835 Cone Assy., Combustion Appelez-nous -
20 Y303841 Cone, Extension (combustion) Appelez-nous -
21 Y312890 Retainer, Heater Chamber Appelez-nous -
22 33001693 Cap, Gas Pipe Appelez-nous -
23 WP489128 Screw Note: Screw, Duct   (Replaces: 22001996) Special Order $ 9.79

NI WP489128 Screw Note: Screw, Heater Chamber Retainer   (Replaces: 22001996) Special Order $ 9.79


    View Diagram in Separate Window     Print Icon   Print Part List
