SELECT A DIAGRAM

Diagram for 01 - Base Frame
01 - Base Frame

Diagram for 02 - Top Cover Assembly
02 - Top Cover Assembly

Diagram for 03 - Door Lock Assembly
03 - Door Lock Assembly

Diagram for 04 - Door
04 - Door

Diagram for 05 - Soap Box, Drain & Hose Assembly
05 - Soap Box, Drain & Hose Assembly

Diagram for 06 - Control Panel (pn)
06 - Control Panel (pn)

Diagram for 07 - Basket & Outer Shell Assembly
07 - Basket & Outer Shell Assembly

Diagram for 08 - Motor & Basket Pulley
08 - Motor & Basket Pulley

Diagram for 09 - Water Valve & Rear Panel
09 - Water Valve & Rear Panel

Diagram for 10 - Cabinet (pn)
10 - Cabinet (pn)


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 23004026 Frame Welded Appelez-nous -
002 23004092 Nut M6 Appelez-nous -
003 23002424 Washer Appelez-nous -
004 23002425 Washer, Lock Special Order $ 473.30

005 23002280 Nut M6 Appelez-nous -
006 23004093 Riveting Blind Nut M4 Appelez-nous -
007 23004094 Holder Appelez-nous -
008 23002438 Washer (m6) Appelez-nous -
009 23002426 Washer, Lock (m4) Appelez-nous -
010 23004095 Bolt M4x16 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

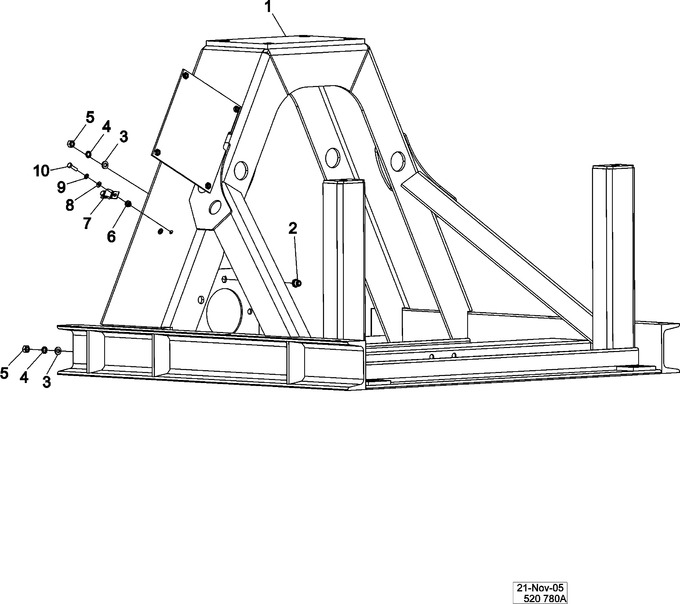

Diagram for MFR30PNCTS
