SELECT A DIAGRAM

01 - Base Frame

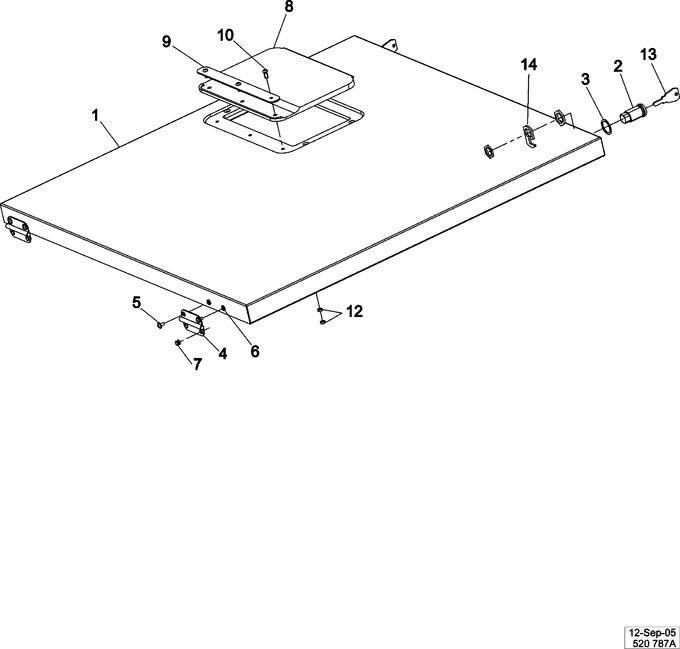

02 - Top Cover Assembly


03 - Door Lock Assembly


04 - Door


05 - Soap Box, Drain & Hose Assembly


06 - Control Panel (pn)


07 - Basket & Outer Shell Assembly


08 - Motor & Basket Pulley


09 - Water Valve & Rear Panel


10 - Cabinet (pn)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004102		Top Cover Mfr30 Lu		Appelez-nous	-
002	23001006		Lock, Top Panel		Appelez-nous	-
003	23001007		Washer, Fiber		Appelez-nous	-
004	23004103		Hinge		Appelez-nous	-
005	23004104		Bolt M4 X 8		Appelez-nous	-
006	23004093		Riveting Blind Nut M4		Appelez-nous	-
007	23004105		Rivet 4x6,3		Appelez-nous	-
008	23002111		Rubber Cover, Soap Box   (Replaces: 23001003)			Immediately	$ 221.87
009	23003781		Lacth, Soap Hopper Cover		Appelez-nous	-
010	23001012		Screw (m4 X 12 Stnls Steel)				$ 13.48
012	23002652		Nut (qty Of 4 = 1 Piece)		Appelez-nous	-
013	23002673		Key-top Panel (25001)				$ 1,792.62
014	23001009		Lock Hook (short)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
