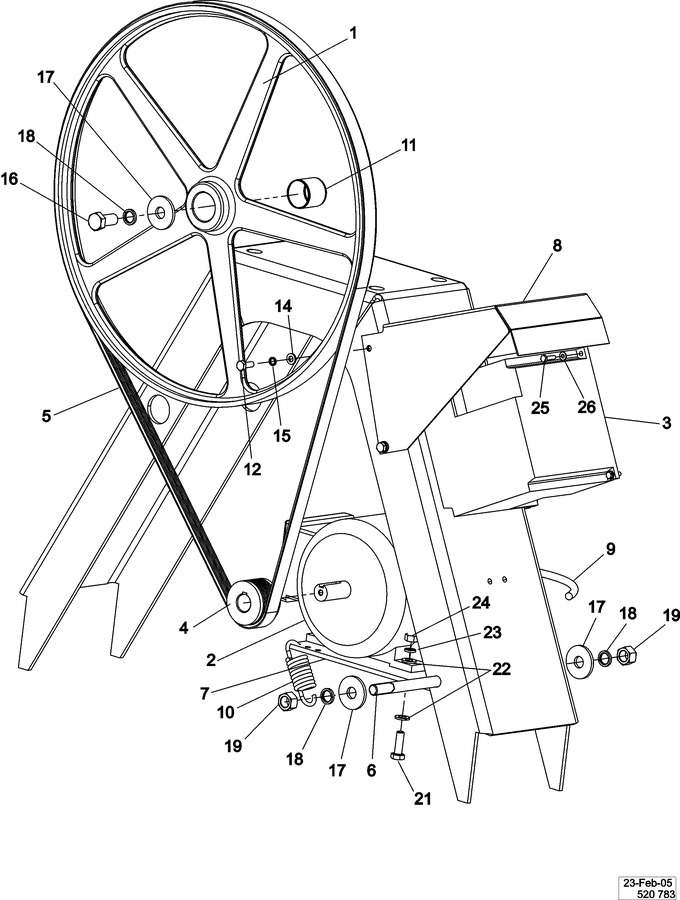

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004149		Drum Pulley		Appelez-nous	-
002	23004079		Motor 240v 3phase Lu		Appelez-nous	-
003	23004078		Inverter Mit .75kw 1phase		Appelez-nous	-
004	23004150		Motor Pulley		Appelez-nous	-
005	23004151		Belt		Appelez-nous	-
006	23004152		Motor Rod		Appelez-nous	-
007	23004153		Motor Bracket Complete		Appelez-nous	-
008	23004154		Inverter Cover		Appelez-nous	-
009	23004155		Motor Harness		Appelez-nous	-
010	23004156		Spring, Tension		Appelez-nous	-
011	23004157		Ring, Tolerance		Appelez-nous	-
012	23004114		Screw (m6 X16)   (Replaces: 23002461)		Appelez-nous	-
014	23003778		Washer 12		Appelez-nous	-
015	23003778		Washer 12		Appelez-nous	-
016	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)				$ 504.91
017	23004146		Washer 12		Appelez-nous	-
018	23002658		Washer (12)		Appelez-nous	-
019	23003676		Nut M12		Appelez-nous	-
021	23002647		Screw (m8x25)		Appelez-nous	-
022	23003769		Washer M8		Appelez-nous	-
023	23002439		Washer, Spring Lock (8)		Appelez-nous	-
024	NLA		Nut M8		Appelez-nous	-
025	23004095		Bolt M4x16		Appelez-nous	-
026	23002438		Washer (m6)		Appelez-nous	-
