SELECT A DIAGRAM

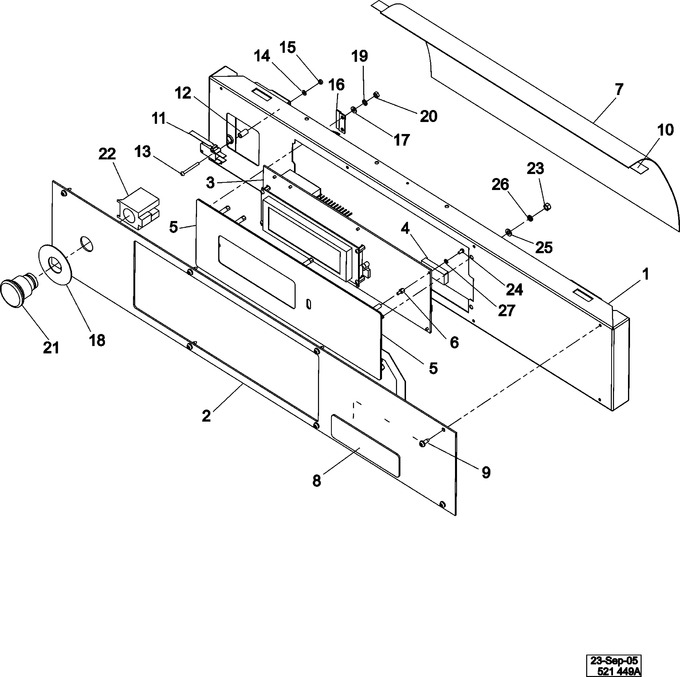

01 - Base Frame


02 - Top Cover Assembly


03 - Door Lock Assembly


04 - Door


05 - Soap Box, Drain & Hose Assembly


06 - Control Panel (pn)


07 - Basket & Outer Shell Assembly


08 - Motor & Basket Pulley


09 - Water Valve & Rear Panel


10 - Cabinet (pn)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004131		Bracket, Control Panel		Appelez-nous	-
002	23004132		Control Panel(facia)pn		Appelez-nous	-
003	23003991		Mcg Controller		Appelez-nous	-
004	23003992		Mcg Eeprom Chip Lu		Appelez-nous	-
005	23004133		Key Board, Full Control		Appelez-nous	-
006	23004134		Spacer M3xm5x3		Appelez-nous	-
007	NLA		Cover, Plastic		Appelez-nous	-
008	23004135		Maytag Label		Appelez-nous	-
009	WPW10131119		Screw   (Replaces: 23003810)				$ 6.26
010	23004126		Double Side Tape		Appelez-nous	-
011	23001145		Microswitch, Long Lever		Appelez-nous	-
012	23003653		Tube		Appelez-nous	-
013	23003652		Screw, Switch		Appelez-nous	-
014	23003654		Washer (m3)		Appelez-nous	-
015	23002958		Nut M3		Appelez-nous	-
016	23003871		Bracket, Z		Appelez-nous	-
017	23002438		Washer (m6)		Appelez-nous	-
018	23002330		Label, Central Stop		Appelez-nous	-
019	23002950		Lock Washer M4		Appelez-nous	-
020	23003666		Nut (m4)		Appelez-nous	-
021	23004136		Stop Button Emergency		Appelez-nous	-
022	23004137		Contact Block		Appelez-nous	-
023	W10244602		Nut (m4) Lu   (Replaces: 23002452)				$ 11.90
024	23002869		Screw (m3x6)		Appelez-nous	-
025	23002862		Washer (5,3)		Appelez-nous	-
026	23002836		Washer (5)		Appelez-nous	-
027	NLA		Lockwasher (m3)		Appelez-nous	-
028	23004138		Soap Supply Label		Appelez-nous	-
029	23004139		Emergency Stop Harness		Appelez-nous	-
