SELECT A DIAGRAM

01 - Base Frame


02 - Top Cover Assembly


03 - Door Lock Assembly


04 - Door


05 - Soap Box, Drain & Hose Assembly


06 - Control Panel (pn)


07 - Basket & Outer Shell Assembly


08 - Motor & Basket Pulley

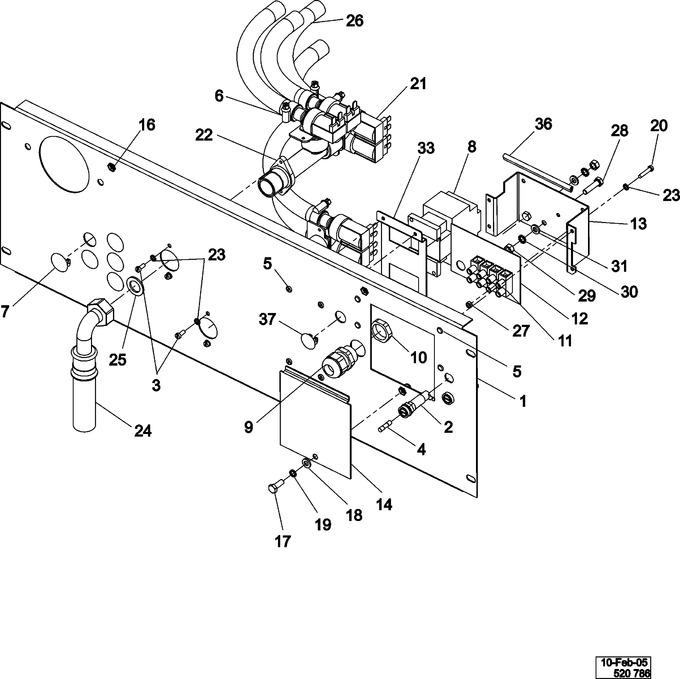

09 - Water Valve & Rear Panel


10 - Cabinet (pn)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004158		Rear Panel		Appelez-nous	-
002	23001462		Holder, Fuse		Appelez-nous	-
003	23002423		Screw (m4 X 10)		Appelez-nous	-
004	WP23001508		Fuse (1a)   (Replaces: 23001508)				$ 48.21
005	23004105		Rivet 4x6,3		Appelez-nous	-
006	WP596669		Clamp, Hose   (Replaces: 23001506)			Immediately	$ 7.56
007	23002795		Plug		Appelez-nous	-
008	23003750		Contactor Lc1 Do9		Appelez-nous	-
009	23002196		Swivel, Cable		Appelez-nous	-
010	23002197		Nut		Appelez-nous	-
011	23002923		Board, Terminal		Appelez-nous	-
012	23004159		Electro-insul Foil		Appelez-nous	-
013	23004160		Term Board Box		Appelez-nous	-
014	23003661		Terminal Cover Lu		Appelez-nous	-
016	23004092		Nut M6		Appelez-nous	-
017	23004114		Screw (m6 X16)   (Replaces: 23002461)		Appelez-nous	-
018	23003778		Washer 12		Appelez-nous	-
019	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)				$ 504.91
020	NLA		Screw (m4x20)		Appelez-nous	-
021	23001455		Valve, Two Way (220v 50/60hz)		Appelez-nous	-
022	23002924		T-part (3/4)		Appelez-nous	-
023	23002950		Lock Washer M4		Appelez-nous	-
024	23001523		Hose, Connection		Appelez-nous	-
025	23002921		Washer, Fill Hose		Appelez-nous	-
026	23001507		Waterhose (green)		Appelez-nous	-
027	23003666		Nut (m4)		Appelez-nous	-
028	23002806		Screw (m6 X 25)		Appelez-nous	-
029	23002651		Nut (m6)		Appelez-nous	-
030	23002425		Washer, Lock				$ 473.30
031	23002424		Washer		Appelez-nous	-
032	23002473		Rubber, Protective				$ 4.52
036	23004161		Bracket, Contactor		Appelez-nous	-
037	23003785		Plug		Appelez-nous	-
038	23004162		Main Harness		Appelez-nous	-
039	23004163		Door Lock Harness		Appelez-nous	-
040	23004139		Emergency Stop Harness		Appelez-nous	-
041	23004164		Connector Liq Soap Lu		Appelez-nous	-
042	23004165		Motor Cable		Appelez-nous	-
043	23004166		Communication Cable		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
