SELECT A DIAGRAM

01 - Base Frame


02 - Top Cover Assembly


03 - Door Lock Assembly


04 - Door


05 - Soap Box, Drain & Hose Assembly


06 - Control Panel (pn)


07 - Basket & Outer Shell Assembly


08 - Motor & Basket Pulley


09 - Water Valve & Rear Panel

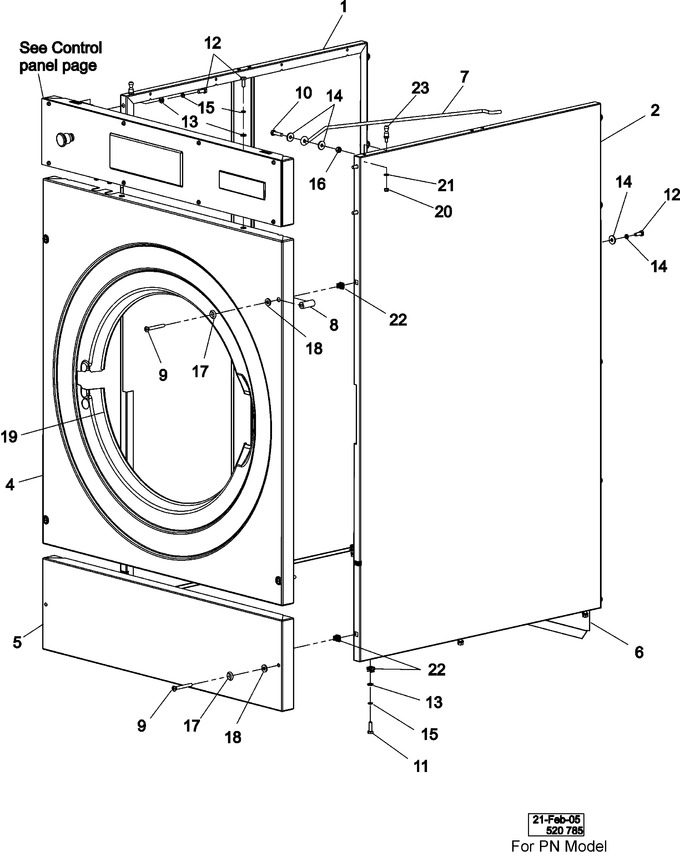

10 - Cabinet (pn)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004096		Panel, L Side Comp Ss	10	Appelez-nous	-
002	23004097		Panel, R Side Comp Ss	10	Appelez-nous	-
004	23004101		Panel, Front (opl)	10	Appelez-nous	-
004	23004516		Front Panel,mfr30pn	13	Appelez-nous	-
005	23004099		Panel, Service	10	Appelez-nous	-
006	23004100		Rear Cover	10	Appelez-nous	-
007	23001330		Support Rod, Top Panel	10	Appelez-nous	-
008	23002860		Tube, Distance	10	Appelez-nous	-
009	23002456		Screw (m6x50)	10	Appelez-nous	-
010	23002861		Screw (m6x25) Lu	10	Appelez-nous	-
011	23002462		Screw (m6 X 20) Lu	10			$ 5.14
012	23004114		Screw (m6 X16)   (Replaces: 23002461)	10	Appelez-nous	-
013	23003778		Washer 12	10	Appelez-nous	-
014	23003012		Washer Lu	10	Appelez-nous	-
015	20007283		Washer, Spring Lock (6)   (Replaces: 23002440)	10			$ 504.91
016	23003773		Nut M6	10	Appelez-nous	-
017	23002457		Washer	10	Appelez-nous	-
018	23002458		Washer (fiber)	10	Appelez-nous	-
019	23002473		Rubber, Protective	10			$ 4.52
020	23003716		Nut M5	10	Appelez-nous	-
021	23002862		Washer (5,3)	10	Appelez-nous	-
022	23002455		Nut, Rapid (m6)	10	Appelez-nous	-
023	23001332		Pin, Srv	10	Appelez-nous	-
