SELECT A DIAGRAM

01 - Base Frame


02 - Top Cover Assembly


03 - Door Lock Assembly


04 - Door


05 - Soap Box, Drain & Hose Assembly


06 - Control Panel (pn)


07 - Basket & Outer Shell Assembly


08 - Motor & Basket Pulley


09 - Water Valve & Rear Panel


10 - Cabinet (pn)

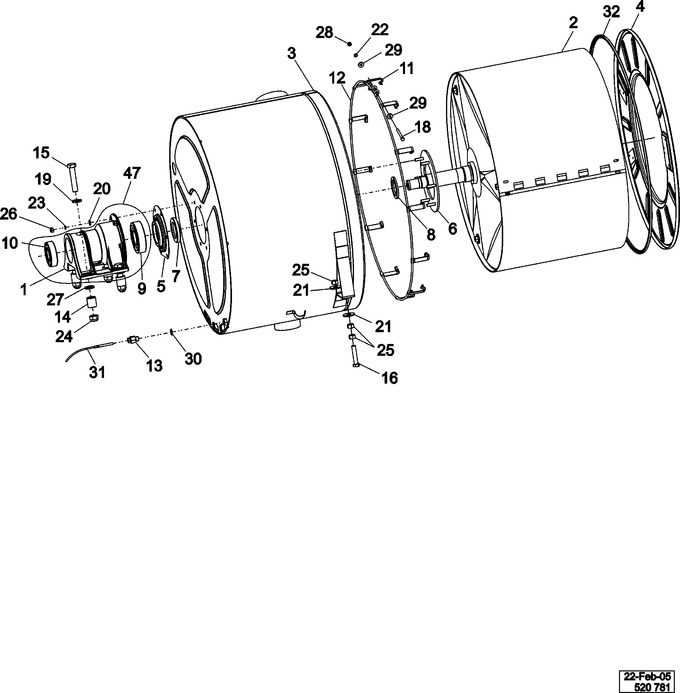

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	23004027		Bearing Housing		Appelez-nous	-
002	23004028		Inner Tub Complete		Appelez-nous	-
003	23004029		Outer Tub Complete		Appelez-nous	-
004	23004140		Tub Front		Appelez-nous	-
005	23004030		Axial Seal Holder		Appelez-nous	-
006	23004031		Sealing Ring Complete		Appelez-nous	-
007	23001234		Seal, Water		Appelez-nous	-
008	23001233		Ring, Seal		Appelez-nous	-
009	23003615		Bearing		Appelez-nous	-
010	23004032		Bearing		Appelez-nous	-
011	23004141		Front Cover Clip		Appelez-nous	-
012	23004142		Clamp Ii		Appelez-nous	-
013	23003807		Holder Thermostat Sensor		Appelez-nous	-
014	23004143		Spacer		Appelez-nous	-
015	23004144		Bolt M16 X 80		Appelez-nous	-
016	23004145		Bolt M12 X 60		Appelez-nous	-
018	23004000		Bolt M6 X 60		Appelez-nous	-
019	23001735		Washer M17		Appelez-nous	-
020	23003769		Washer M8		Appelez-nous	-
021	23004146		Washer 12		Appelez-nous	-
022	23002756		Washer		Appelez-nous	-
023	23002439		Washer, Spring Lock (8)		Appelez-nous	-
024	23001651		Nut (m16)		Appelez-nous	-
025	23003676		Nut M12		Appelez-nous	-
026	23001607		Nut (m8)		Appelez-nous	-
027	23004147		Washer 17		Appelez-nous	-
028	23003773		Nut M6		Appelez-nous	-
029	23002469		Washer		Appelez-nous	-
030	23002179		Washer		Appelez-nous	-
031	23003831		Sensor, Temperature		Appelez-nous	-
032	23004148		Tub Front Gasket		Appelez-nous	-
047	23004033		Hub Complete W/bearings		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
