SELECT A DIAGRAM

01 - Cover Sheet


02 - Base Frame Parts


03 - Cabinet Parts


04 - Top Cover Assembly Parts


05 - Door Lock Assembly Parts


06 - Door Parts-prior To Series 16


07 - Door Parts-starting With Series 16


08 - Soap Box, Drain And Hose Assembly Parts


09 - Control Panel Parts


10 - Coin Vault Parts


11 - Tub And Drum Parts


12 - Drive Parts


13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts

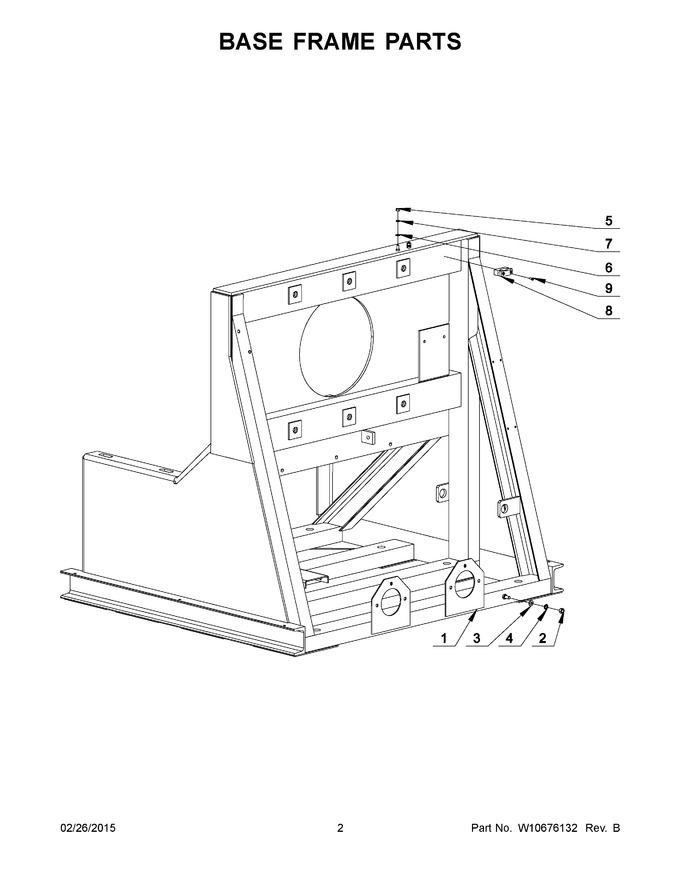

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004055		Frame				$ 23.83
2	23002487		Nut M8		Appelez-nous	-
3	23001608		Washer M8.4		Appelez-nous	-
4	23002427		Washer, Lock M8		Appelez-nous	-
5	23002280		Nut M6		Appelez-nous	-
6	23002424		Washer M6.4		Appelez-nous	-
7	23002425		Washer, Lock M6				$ 473.30
8	23002428		Clip, Cable		Appelez-nous	-
9	23001361		Bolt M4x10		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
