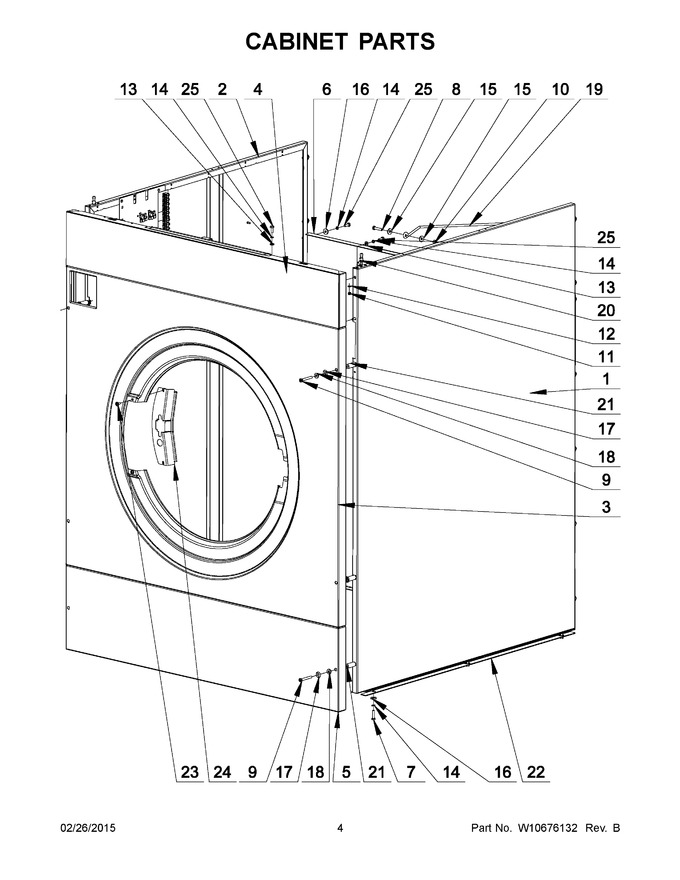

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004269		Panel, Right Side				$ 34.20
2	23004268		Panel, Left Side		Appelez-nous	-
3	W10684148		Panel, Front		Appelez-nous	-
4	W10684074		Panel, Control Mcb		Appelez-nous	-
5	23002449		Panel, Service		Appelez-nous	-
6	23002450		Panel, Rear		Appelez-nous	-
7	23002861		Bolt M6 X 25		Appelez-nous	-
8	23002463		Bolt M6x30		Appelez-nous	-
9	23002456		Screw M6x50		Appelez-nous	-
10	23003773		Nut M6		Appelez-nous	-
11	23003716		Nut M5		Appelez-nous	-
12	23002862		Washer M5.3		Appelez-nous	-
13	23002756		Lockwasher, M6		Appelez-nous	-
14	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
15	23003012		Washer M6		Appelez-nous	-
16	23002469		Washer M6		Appelez-nous	-
17	23002457		Washer M6		Appelez-nous	-
18	23002458		Washer M15x7x2		Appelez-nous	-
19	23001330		Prop Rod		Appelez-nous	-
20	23001332		Alignment Pin		Appelez-nous	-
21	23002860		Tube, Distance		Appelez-nous	-
22	23004272		Shim		Appelez-nous	-
23	W10666026		Bolt M5x12		Appelez-nous	-
24	W10665809		Door Lock Cover Complete		Appelez-nous	-
25	23004114		Bolt M6x16   (Replaces: 23002461)		Appelez-nous	-
NI	W10684075		Main Wiring		Appelez-nous	-
NI	W10510677		Door Lock Wiring		Appelez-nous	-
NI	23004139		Emergency Stop Harness (opl)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
