Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 23003425 Trunnion Appelez-nous -
2 23001210 Bearing, Front Appelez-nous -
3 23001211 Bearing, Rear Appelez-nous -
4 23001218 Ring, Spacer Appelez-nous -
5 23001219 Ring, Bushing Appelez-nous -
6 23001221 Holder Axial Seal Appelez-nous -
7 23001220 Seal, Axial Appelez-nous -
8 23002649 Bolt M6x12 Appelez-nous -
9 23003815 Ring, Axial Appelez-nous -
10 23003426 Holder Axial Seal Appelez-nous -
11 23001213 Seal, Water Appelez-nous -
12 23001212 Ring, Seal Appelez-nous -
13 23001372 Screw M4x10 Appelez-nous -
14 23003427 Ring, Sealing Appelez-nous -
15 23003354 Bolt M10x25 Appelez-nous -
16 23001201 Washer M22x11x1 Special Order $ 303.26

17 23001158 Washer M6 Appelez-nous -
18 23004291 Bolt M16x80 Appelez-nous -
20 W10684107 House, Bearing Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

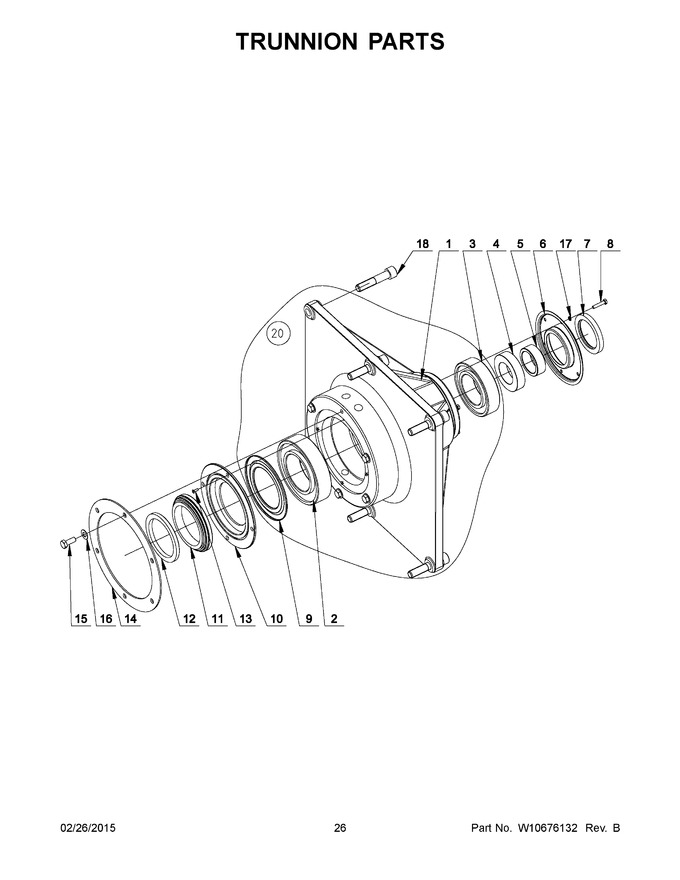

Diagram for MFR80PDCTS
