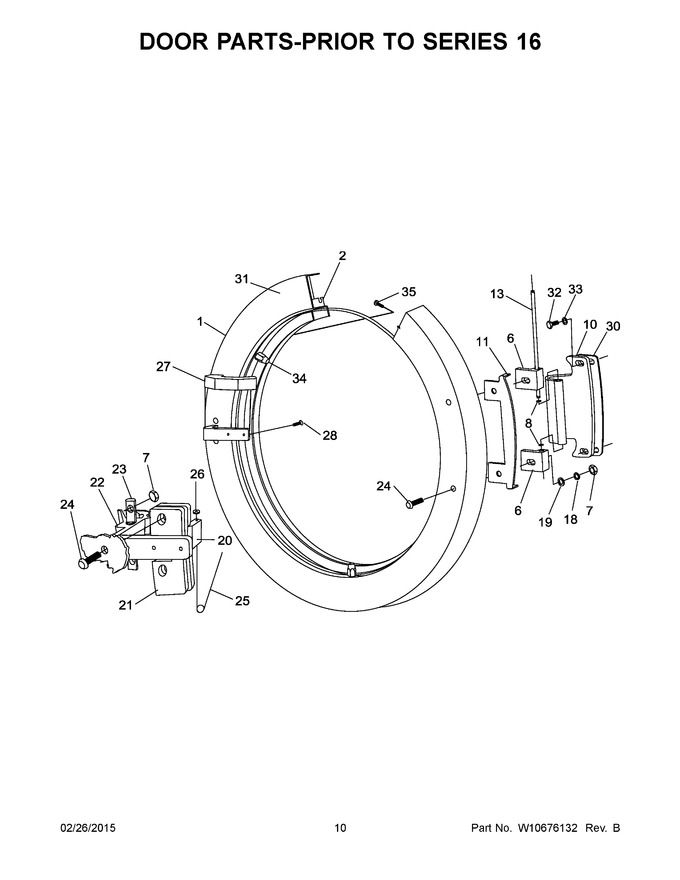

06 - Door Parts-prior To Series 16


07 - Door Parts-starting With Series 16


08 - Soap Box, Drain And Hose Assembly Parts


09 - Control Panel Parts


10 - Coin Vault Parts


11 - Tub And Drum Parts


12 - Drive Parts


13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23004236		Door		Appelez-nous	-
2	23003413		Gasket, Door		Appelez-nous	-
6	23003545		Hinge Block		Appelez-nous	-
7	23002280		Nut M6		Appelez-nous	-
8	23002727		Washer M8		Appelez-nous	-
10	W10495940		Door Hinge		Appelez-nous	-
11	23004110		Hinge Block Washer		Appelez-nous	-
13	23004112		Door Pin		Appelez-nous	-
18	23001158		Washer M6		Appelez-nous	-
19	23002424		Washer M6.4		Appelez-nous	-
20	23001370		Handle, Door Block With Pin		Appelez-nous	-
21	23003420		Spacer		Appelez-nous	-
22	23003979		Door Handle		Appelez-nous	-
23	23001168		Shaft, Lever		Appelez-nous	-
24	23002937		Screw M6x26		Appelez-nous	-
25	23001169		Spring, Door Handle		Appelez-nous	-
26	23002499		Washer		Appelez-nous	-
27	23004239		Door Handle		Appelez-nous	-
28	23004113		Bolt M4x12		Appelez-nous	-
30	23004237		Door Hinge Washer		Appelez-nous	-
31	23004240		Door Reinforcement		Appelez-nous	-
32	23003419		Screw M8x24		Appelez-nous	-
33	23001608		Washer M8.4		Appelez-nous	-
34	23004238		Nut M4		Appelez-nous	-
35	8173901		Screw   (Replaces: 23003811)		Appelez-nous	-
