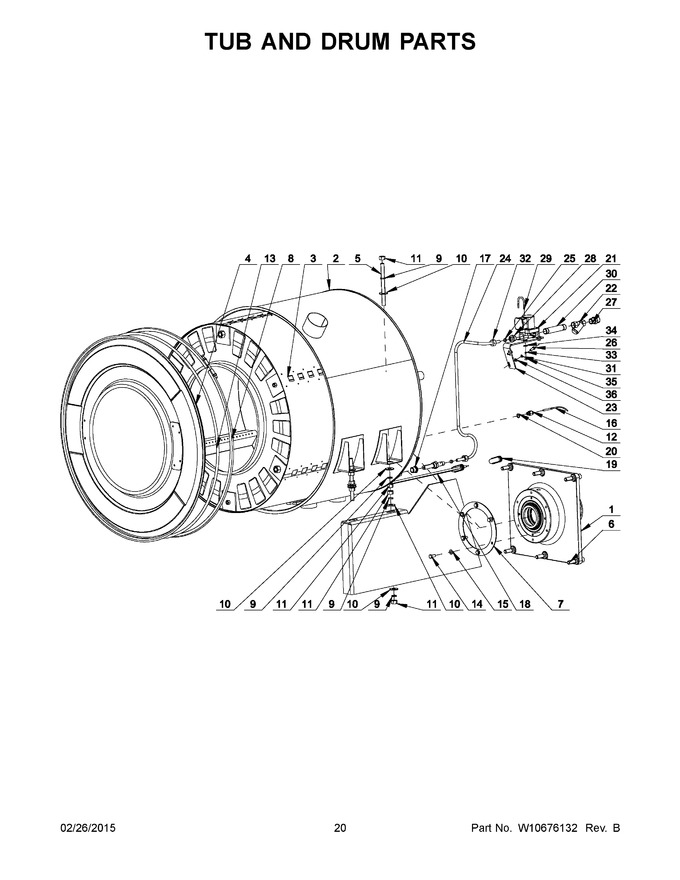

11 - Tub And Drum Parts


12 - Drive Parts


13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10684085		Bearing Assembly (complete)		Appelez-nous	-
2	W10684086		Tub		Appelez-nous	-
3	23003398		Drum		Appelez-nous	-
4	23004057		Panel, Front Tub (complete)		Appelez-nous	-
5	23003401		Bolt, Adjusting		Appelez-nous	-
6	23004291		Bolt M16x80		Appelez-nous	-
7	23003427		Ring, Sealing		Appelez-nous	-
8	23002484		Ring, Clip (tub)		Appelez-nous	-
9	23003402		Washer M17		Appelez-nous	-
10	23003403		Washer M17x40x3		Appelez-nous	-
11	23004281		Nut M16		Appelez-nous	-
12	23003807		Thermostat Sensor Holder		Appelez-nous	-
13	23002485		Ring, Seal (tub)		Appelez-nous	-
14	23003354		Bolt M10x25		Appelez-nous	-
15	23001201		Washer M22x11x1				$ 303.26
16	23003964		Temperature Sensor		Appelez-nous	-
17	23002480		Plug (3/4)		Appelez-nous	-
18	WPW10399309		Heating Element 2x3000w   (Replaces: 23002482)				$ 174.01
19	23001594		Heating Element Hole Plug		Appelez-nous	-
20	23002179		Washer		Appelez-nous	-
21	WP23004282		Steam Valve 3/4" With Coil   (Replaces: 23004282)				$ 1,192.97
22	23003410		Steam Filter 3/4		Appelez-nous	-
23	W10684092		Bracket, Steam Valve		Appelez-nous	-
24	W10684093		Tube, Steam		Appelez-nous	-
25	W10667392		Fastening Cone		Appelez-nous	-
26	23001264		Bolt M8x20		Appelez-nous	-
27	23003411		Pipe Nipple		Appelez-nous	-
28	23003171		Adapter		Appelez-nous	-
29	23002433		Holder		Appelez-nous	-
30	23003408		Tube		Appelez-nous	-
31	23001265		Washer M8		Appelez-nous	-
32	W10667395		Nut		Appelez-nous	-
33	20007283		Washer M6   (Replaces: 23002440)				$ 504.91
34	23003012		Washer M6		Appelez-nous	-
35	23003773		Nut M6		Appelez-nous	-
36	23003769		Washer M8		Appelez-nous	-
18A	W10684088		Heating Element 2x2000w		Appelez-nous	-
21A	W10553970		Steam Valve 3/4" Without Coil		Appelez-nous	-
21B	W10286316		Steam Valve (coil)		Appelez-nous	-
