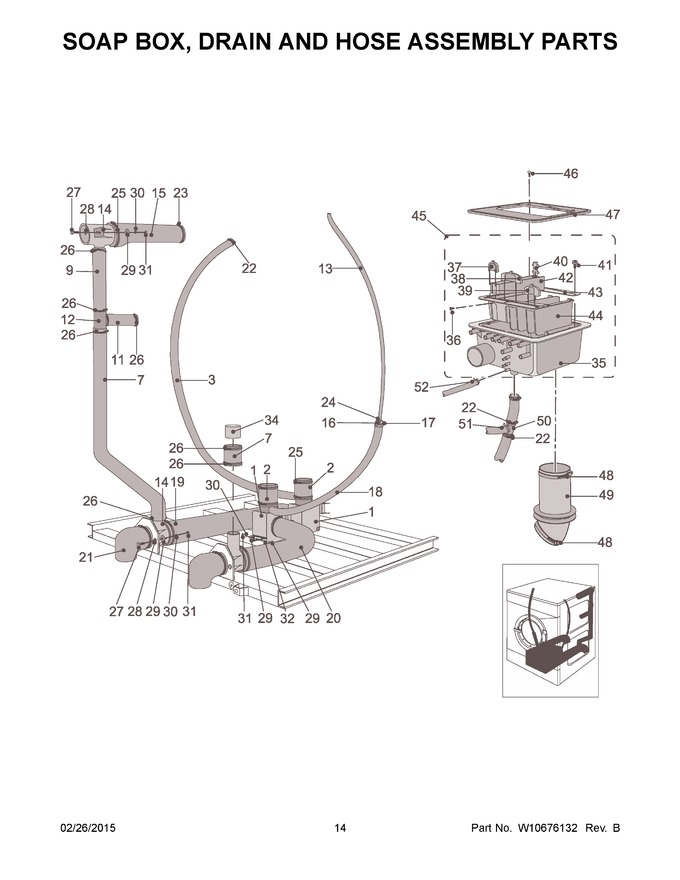

08 - Soap Box, Drain And Hose Assembly Parts


09 - Control Panel Parts


10 - Coin Vault Parts


11 - Tub And Drum Parts


12 - Drive Parts


13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	23001244		Drain Valve (complete)				$ 2,768.25
2	23003372		Hose, Outlet Valve Tub		Appelez-nous	-
3	23001246		Lower Hose, Pressure Switch		Appelez-nous	-
7	23003375		Hose, Overflow		Appelez-nous	-
9	20006831		Hose, Overflow   (Replaces: 23004274)		Appelez-nous	-
11	23003379		Hose, Overflow		Appelez-nous	-
12	23001255		Small T		Appelez-nous	-
13	23001252		Upper Hose, Pressure Switch		Appelez-nous	-
14	23001253		Large T		Appelez-nous	-
15	23004241		Hopper To T-hose		Appelez-nous	-
16	23001260		Pressure Switch Hose Fitting		Appelez-nous	-
17	WP285655		Hose Clamp   (Replaces: 23001259)			Immediately	$ 7.55
18	23003380		Elbow		Appelez-nous	-
19	23003381		Elbow, Outlet		Appelez-nous	-
20	23003382		Elbow, Outlet		Appelez-nous	-
21	23002015		Drain Elbow		Appelez-nous	-
22	WP616099		Hose Clamp (20-32)   (Replaces: 23001262)			Immediately	$ 7.03
23	23001256		Hose Clamp (60-80)		Appelez-nous	-
24	WP596669		Clamp, Corbin (a5.5)   (Replaces: 23001257)			Immediately	$ 7.56
25	WP696392		Hose Clamp (70-90)   (Replaces: 23001258)				$ 7.31
26	WP616099		Hose Clamp 32-50   (Replaces: 23001261)			Immediately	$ 7.03
27	23002475		Bolt M8x20				$ 13.66
28	23003769		Washer M8		Appelez-nous	-
29	23002437		Washer M8		Appelez-nous	-
30	23001265		Washer M8		Appelez-nous	-
31	23001266		Nut M8		Appelez-nous	-
32	23002908		Bolt M8x120		Appelez-nous	-
34	20006833		Cap   (Replaces: 23004275)		Appelez-nous	-
35	23001016		External Soap Hopper		Appelez-nous	-
36	23003783		Screw		Appelez-nous	-
37	23001023		Fabric Softener Diverter		Appelez-nous	-
38	23001022		Mainwash Diverter		Appelez-nous	-
39	23001021		Prewash Diverter		Appelez-nous	-
40	23001018		Syphon Hose		Appelez-nous	-
41	23003782		Screw				$ 3.66
42	23001019		Fabric Softener Insert		Appelez-nous	-
43	23001020		Insert Retainer		Appelez-nous	-
44	23001017		Soap Hopper Insert		Appelez-nous	-
45	23004242		Complete Soaphopper		Appelez-nous	-
46	23003484		Bolt M5x16				$ 5.27
47	23001015		Soap Hopper Gasket		Appelez-nous	-
48	WP696392		Hose Clamp (90-110)   (Replaces: 23001025)				$ 7.31
49	WP23004115		Rubber, Tub Soap Hopper   (Replaces: 23004115)				$ 130.20
50	W10304864		T Fitting		Appelez-nous	-
51	WP596669		Hose Clamp   (Replaces: W10286346)			Immediately	$ 7.56
52	W10666435		Hose Clamp		Appelez-nous	-
