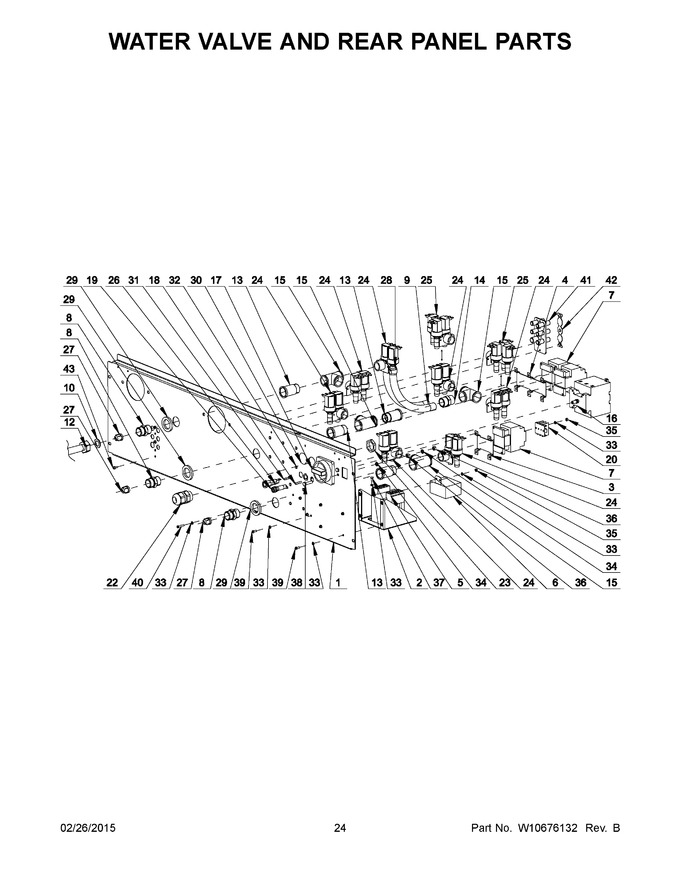

13 - Water Valve And Rear Panel Parts


14 - Trunnion Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10684102		Panel, Rear		Appelez-nous	-
2	23004316		Bracket, Transformer		Appelez-nous	-
3	23004161		Bracket, Contactor		Appelez-nous	-
4	W10667697		Bracket, Double Contactor		Appelez-nous	-
5	W10286352		Transformer		Appelez-nous	-
6	23004406		Filter, Mcg		Appelez-nous	-
7	23003750		Contactor Lc1 D09m7		Appelez-nous	-
8	W10684103		Coupler		Appelez-nous	-
9	23001507		Hose, Inlet		Appelez-nous	-
10	23002921		Washer, Fill Hose		Appelez-nous	-
12	23001486		Hose, Water Inlet				$ 846.88
13	23001484		Extension (3/4" Pipe Thread)		Appelez-nous	-
14	23001482		Nipple (3/4" Pipe Thread)				$ 747.91
15	23001485		Tee (3/4" Pipe Thread)		Appelez-nous	-
16	23003503		Main Switch 80a (230v)		Appelez-nous	-
17	23003497		Main Switch Knob		Appelez-nous	-
18	23002919		Fuse 0.5a 250v		Appelez-nous	-
19	23001462		Fuse Holder (5x20mm)		Appelez-nous	-
20	23002959		Electric Heat Terminal Board		Appelez-nous	-
22	23002211		Swivel, Cable		Appelez-nous	-
23	23003138		Nut, Cable Swivel				$ 831.00
24	23001455		2-way Inlet Valve		Appelez-nous	-
25	23001533		3-way Inlet Valve				$ 99.79
26	23002210		Fuse Holder (6x32mm)		Appelez-nous	-
27	23002922		Filter Screen		Appelez-nous	-
28	WP596669		Hose Clamp (12-22)   (Replaces: 23001506)			Immediately	$ 7.56
29	23001483		Washer M28x42x5		Appelez-nous	-
30	23002243		Plug		Appelez-nous	-
31	WP22001555		Fuse 1a 500v   (Replaces: 22001555)			Immediately	$ 27.33
32	23002467		Rivet M4x6.6		Appelez-nous	-
33	23002950		Washer, Lock M4		Appelez-nous	-
34	23002425		Washer, Lock M6				$ 473.30
35	23003666		Nut M4		Appelez-nous	-
36	23001312		Nut M6		Appelez-nous	-
37	23001682		Bolt M4x8		Appelez-nous	-
38	23002806		Bolt M6x25		Appelez-nous	-
39	23001361		Bolt M4x10		Appelez-nous	-
40	23002807		Bolt M4x20		Appelez-nous	-
41	W10223169		Chemical Injection Manifold		Appelez-nous	-
42	14227179		Manifold Mounting Plate		Appelez-nous	-
43	WPW10131119		Screw M4x13   (Replaces: 23003810)				$ 6.26
16A	23003502		Main Switch 63a (steam Heating - 230v/400v)		Appelez-nous	-
16B	23003505		Main Switch 63a (fourth Pole)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10684138		Elbow, Inlet Hose		Appelez-nous	-
